Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.125W1/8W, 150Ω, 25V, 5% +/-Tol, 250ppm/Cel, Surface Mount, 0804, CHIP, ROHS COMPLIANT
150 欧姆 ±5% 62.5mW 每元件功率 隔离 器网络，阵列 ±250ppm/°C 0804，凸面，长边端子
得捷:
RES ARRAY 4 RES 150 OHM 0804
立创商城:
150Ω ±5%
艾睿:

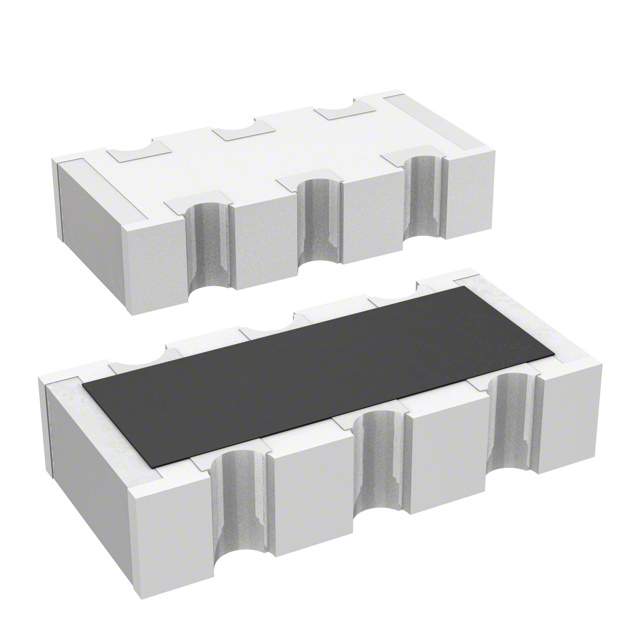

This CAY10-151J4LF resistor array by Bourns packs multiple resistors into one IC chip. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. Its temperature coefficient is ±250 ppm/°C. This product&s;s 4 resistors have a value of 150 Ohm. It has 8 terminals. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product&s;s terminal pitch is 0.5 mm. This product is 2 mm long, 0.35 mm tall and 1 mm deep. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 5%. This device utilizes thick film technology. The CAY10-151J4LF part has a convex termination style.
安富利:
Res Thick Film Array 150 Ohm 5% 1/8W ±250ppm/°C ISOL Molded 8-Pin 0804 Convex SMD Paper T/R
Chip1Stop:
Res Thick Film Array 150 Ohm 5% 0.25W1/4W ±250ppm/℃ ISOL Molded 8-Pin 08044 X 0402 Convex SMD T/R
Electro Sonic:
Res Thick Film Array 150 Ohm 5% 0.25W1/4W ±250ppm/°C ISOL Molded 8-Pin 08044 X 0402 Convex SMD T/R
