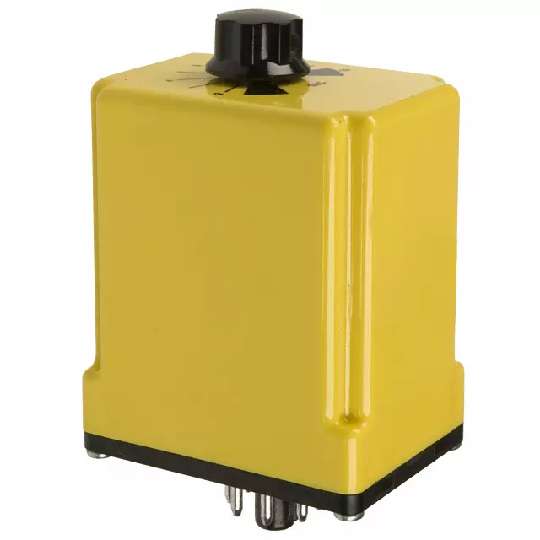

CDB-38-70016

Time Delay Relay 120VAC 10A DPDT 61.1mm 45.2mm 89.8mm Socket

The CD series CMOS IC Time Delay Relay with delay period begins when input voltage is applied. At the end of the delay period, the relay will operate and will not release until input voltage is removed. Reset occurs when input voltage is reapplied. The input voltage must be applied continuously to operate the internal relay. When control Input is applied, the relay energizes. When control input is removed, timing begins. When timing is complete, the relay will de-energize. Time may be reset to zero during timing by reapplying control input.
