CR75NP-100KC

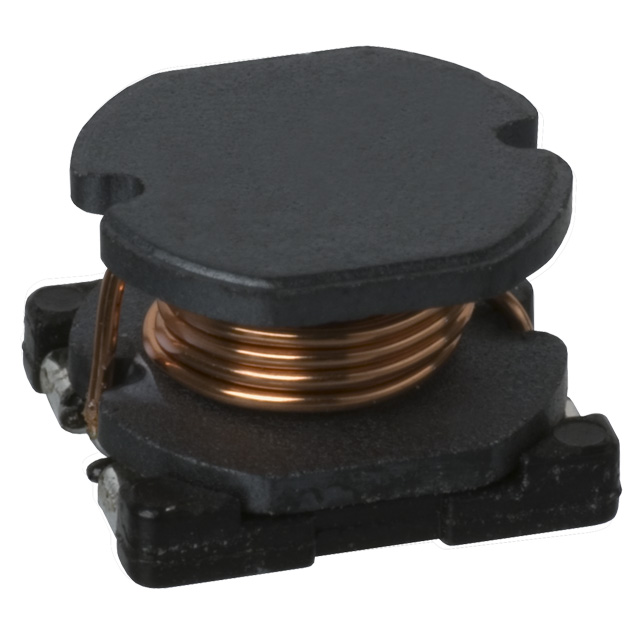

CR75NP-100KC图片1
CR75NP-100KC图片2
CR75NP-100KC图片3
CR75NP-100KC图片4
CR75NP-100KC图片5
CR75NP-100KC图片6
CR75NP-100KC图片7
CR75NP-100KC图片8
CR75NP-100KC图片9
CR75NP-100KC概述

CR 系列 10 uH 10 % 容差 2.3 A 表面贴装 功率电感

10 µH 无屏蔽 绕线 器 2.3 A 70 毫欧最大 非标准


立创商城:
10uH ±10% 70mΩ


得捷:
FIXED IND 10UH 2.3A 70 MOHM SMD


贸泽:
固定电感器 10uH 2.3A


艾睿:
This power CR75NP-100KC surface mount inductor from Sumida Corporation is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its test frequency is 2.52M Hz, while its minimum self-resonant frequency is 28MTyp Hz. It has a tolerance of 10%. It has an inductance of 10u H. This SMD inductor has a maximum DC current of 2.3 A with a maximum resistance of 70m Ohm. This product is 8.1 mm long, 5.5 mm tall and 7.3 mm deep. This device is made with drum core technology.


安富利:
Ind Power Unshielded Wirewound 10uH 10% 2.52MHz 2.3A Carrier T/R


富昌:
CR 系列 10 uH 10 % 容差 2.3 A 表面贴装 功率电感


Verical:
Inductor Power Unshielded Drum Core 10uH 10% 2.52MHz Ferrite 2.3A 0.07Ohm DCR T/R


Win Source:
10μH Unshielded Wirewound Inductor 2.3A 70 mOhm Max Nonstandard


CR75NP-100KC中文资料参数规格
技术参数

额定电流 2.3 A

容差 ±10 %

电感 10 µH

自谐频率 28 MHz

屏蔽 No

测试频率 2.52 MHz

电阻DC) ≤70 mΩ

工作温度Max 100 ℃

工作温度Min -40 ℃

电阻DC Max 0.07 Ω

封装参数

安装方式 Surface Mount

封装 7.8 mm x 7 mm x 5 mm

外形尺寸

长度 7.8 mm

宽度 7 mm

高度 5 mm

封装 7.8 mm x 7 mm x 5 mm

物理参数

工作温度 -40℃ ~ 100℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

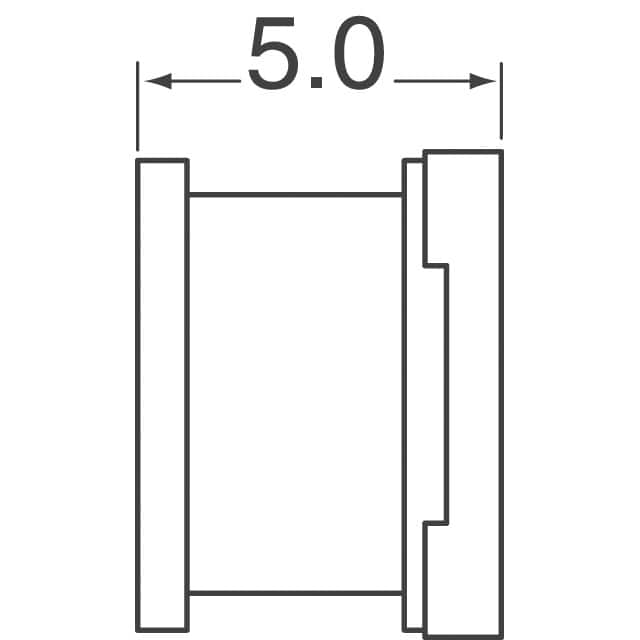

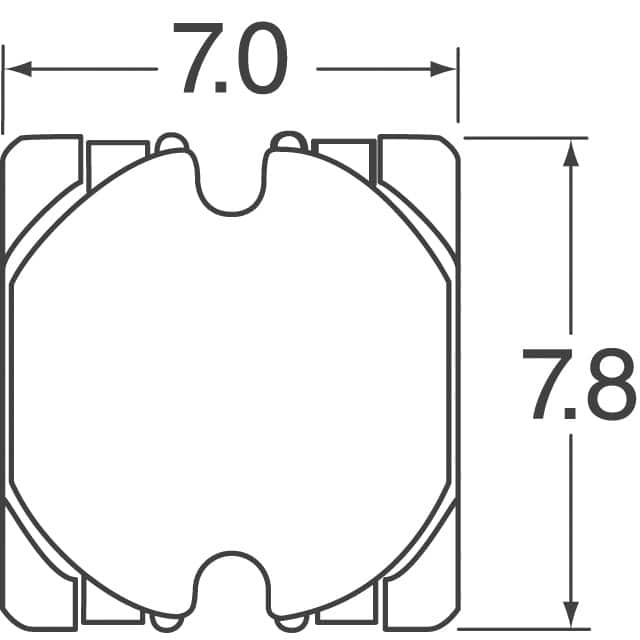

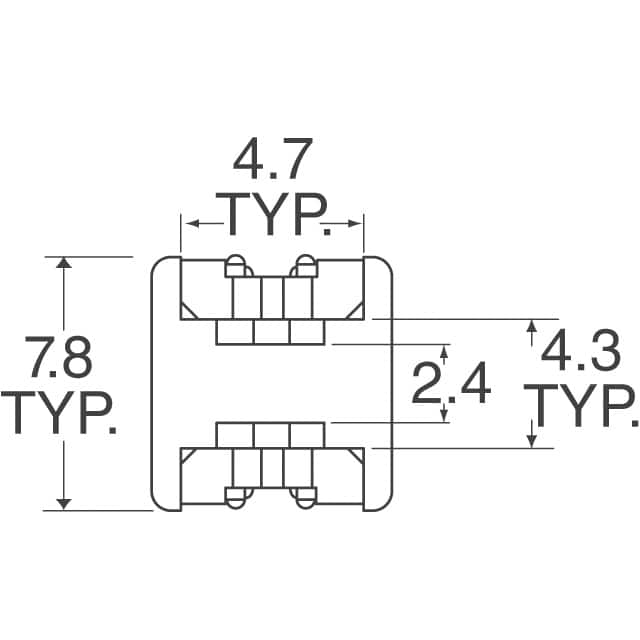

CR75NP-100KC引脚图与封装图
CR75NP-100KC引脚图
在线购买CR75NP-100KC
型号: CR75NP-100KC
制造商: Sumida 胜美达
描述:CR 系列 10 uH 10 % 容差 2.3 A 表面贴装 功率电感
替代型号CR75NP-100KC
型号/品牌 代替类型 替代型号对比

CR75NP-100KC

Sumida 胜美达

当前型号

当前型号

CR75-100KC

胜美达

功能相似

CR75NP-100KC和CR75-100KC的区别
