CDQ2B20-5DZ

15bar 工作压力范围：最小 0.05MPa 0.51kgf/cm2，最大 10bar 备有锥形和并行端口 温度范围（不允许冻结）-10ºC 到 +70ºC（无自动开关），-10ºC 到 +60ºC（有自动开关） 内部内螺纹杆端 丁腈密封件 无需润滑油 适用于固态开关 161-782 和 161-798 ### CQ2 12-100mm 直径

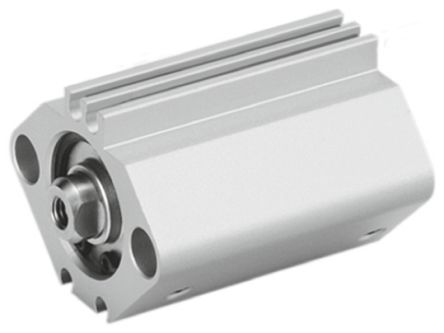

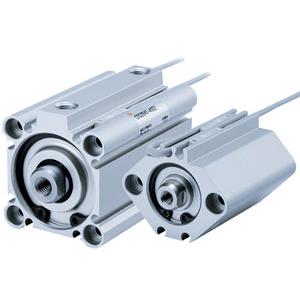

Compact single and double acting cylinders, considerably shorter than corresponding tie rod designs.

* Space and weight saving

* Magnetic piston

* Proof pressure 15bar

* Operating pressure range 0.05MPa 0.51kgf/cm2 min to 10bar max

* Supplied with tapered and parallel ports

* Temperature range no freezing allowed -10°C to +70°C without auto switch, -10°C to +60°C with auto switch

* Internal female threaded rod ends

* Nitrile seals

* Lubrication not required
