CMS_442_RTP

CMS_442_RTP图片1
CMS_442_RTP图片2
CMS_442_RTP图片3
CMS_442_RTP图片4
CMS_442_RTP概述

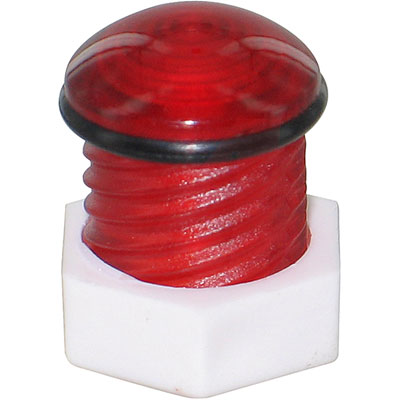

LED Lens, Clip-On, Red, 8.64mm, Round, PC Polycarbonate

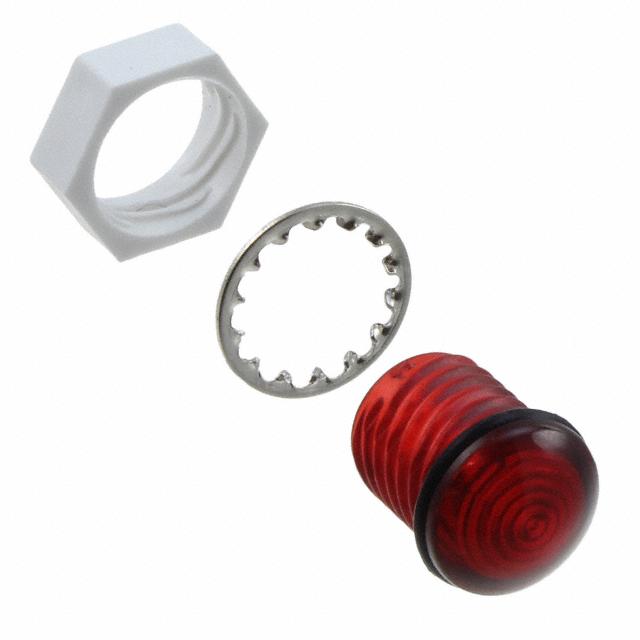

The CMS442RTP is a transparent red round clip-on LED Lens with water tight made of PC polycarbonate for use with 5mm LEDs. It provides a method of viewing PCB mounted LEDs on a display panel. It permits LED viewing angles of up to 180°. It enhance the direct viewing of PCB mounted LEDs. Mono, multi-colour, infrared and photo detection devices can be displayed in this manner. LED brightness levels can range from 20 to 40,000mcd. It contains FH steel lock washer with nickel plate and thermoplastic retaining ring.

CMS_442_RTP中文资料参数规格
技术参数

工作温度Max 105 ℃

工作温度Min -40 ℃

外形尺寸

高度 8.64 mm

物理参数

颜色 Red

材质 Polycarbonate

外观颜色 Red

其他

产品生命周期 Active

包装方式 Bulk

制造应用 LED Lighting, Industrial

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买CMS_442_RTP
型号: CMS_442_RTP
制造商: Visual Communications Company
描述:LED Lens, Clip-On, Red, 8.64mm, Round, PC Polycarbonate
