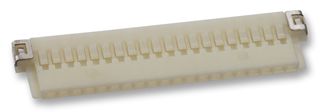

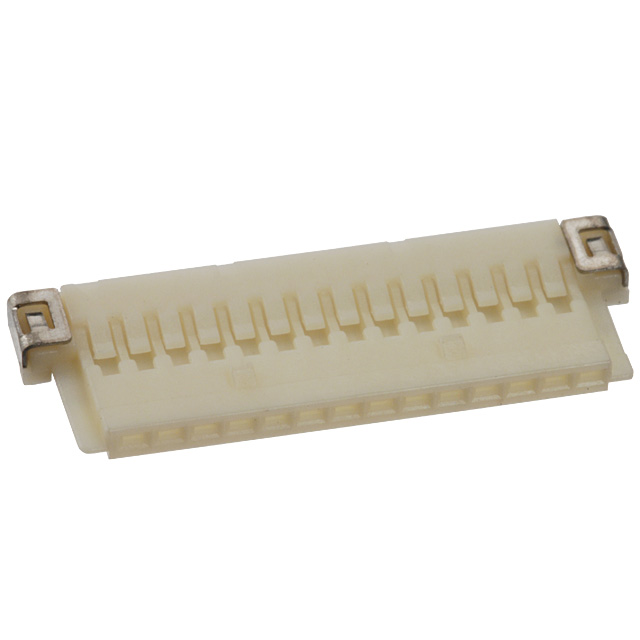

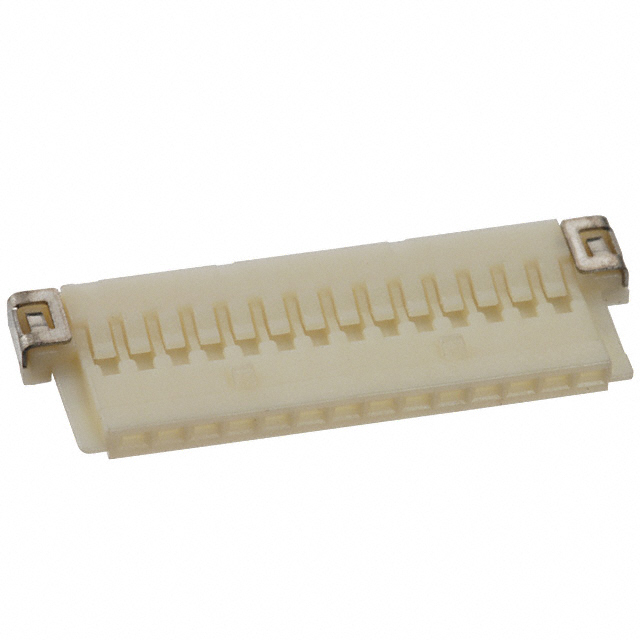

DF19G-14S-1C05

HIROSEHRS  DF19G-14S-1C05  线至板连接器, DF19系列, 14 触点, 插头, 1 mm, 压接, 1 排

The DF19 series board to cable/board to FPC/board to micro-coaxial Cable Connector accepts discrete wire, thin micro-coaxial cable and FPC. The same receptacle will accept plugs terminated with discrete wire, FPC or micro-coaxial cable. The plug assembly external dimensions remain the same when is terminated with discrete wire, FPC or micro- coaxial cable. The device design engineers have a choice of mounting styles-top-board, offset, reverse mount offset and vertical. The metal grounding plates connect with the common ground line.

.

Small configuration and board space

.

Common use of receptacle

.

Uniform external dimensions

.

Variety of mounting styles

.

Ground connection
