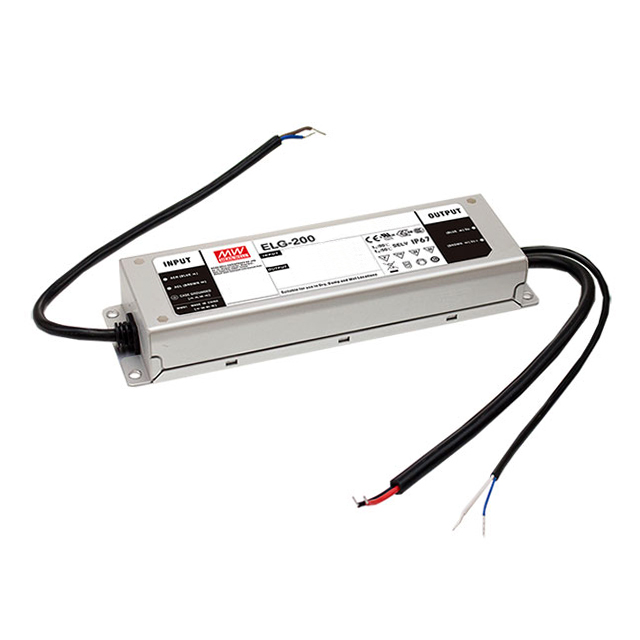

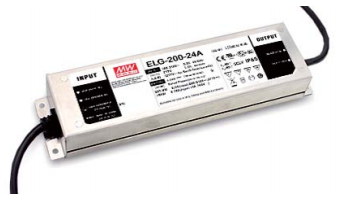

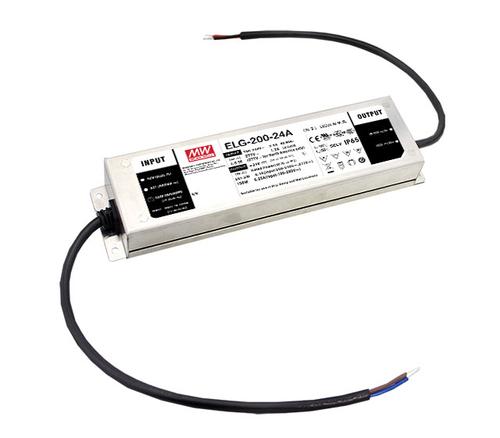

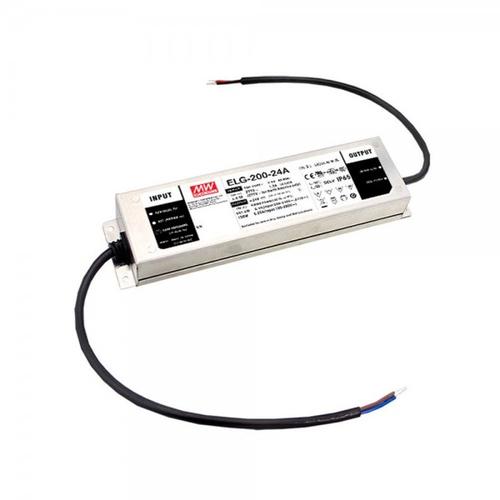

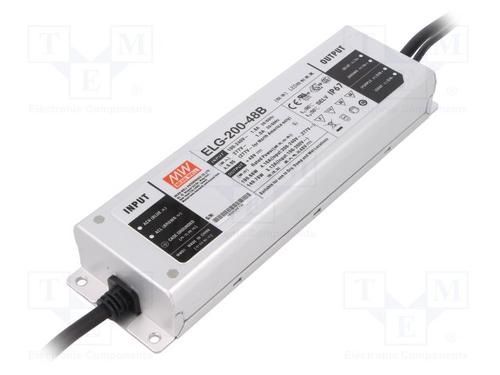

LED Driver CC, CV 200W 4.16A Linear 24-48VDC 100-305VAC PFC 0-10V, PWM, Resistance Dimming IP67 Metal Enclosure
4.16A 48V 恒定电流,电压 LED 驱动器 AC DC 转换器 拓扑 输出
得捷:
LED DRVR CC/CV AC/DC 48V 4.16A
贸泽:
LED Power Supplies 199.68W 48V 4.16A CC+CV 3in1 Dimming
艾睿:
AC/DC LED Power Supply 199.68W Single 6-Pin
安富利:
LED Power Module 100Vac to 305Vac/142Vdc to 431Vdc Single Output 48V 199.68W Lead Wire
TME:
Pwr sup.unit: switched-mode; LED; 199.68W; 48VDC; 4.16A; IP67; 93%
MASTER:
AC/DC LED Pwr Sply - Const Curr/Volt - 199.68W - Fixd: 48 Vdc @ 4,160mA - Dim: 0-10Vdc/PWM/Resist
Electro Sonic:
AC/DC LED Pwr Sply - Const Curr/Volt - 199.68W - Fixd: 48 Vdc @ 4,160mA - Dim: 0-10Vdc/PWM/Resist
CDI:
LED Driver CC, CV 200W 4.16A Linear 24-48Vdc 100-305Vac PFC 0-10V, PWM, Resistance Dimming IP67 Metal Enclosure
额定功率 200 W
输出接口数 1
输出电压 48 V
输出电流 4.16 A
输出功率 199.68 W
隔离电压 3750 kV
输入电压Max 305 VAC
输入电压Min 100 VAC
输出电流Max 4160 mA
输出功率Max 199 W
工作温度Max 90 ℃
工作温度Min -40 ℃
电源电压 100.305VAC, 142.431VDC
输入电压 100VAC ~ 305VAC, 142VDC ~ 431VDC
引脚数 6
封装 Metal Enclosure
封装 Metal Enclosure
重量 1.05 kg
工作温度 -40℃ ~ 90℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 无铅
ECCN代码 EAR99
