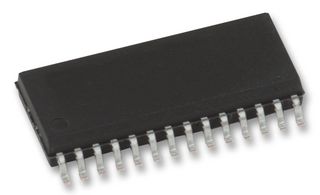

IR2136SPBF

Driver 600V 0.35A 6Out Hi/Lo Side 3-Phase Brdg Inv 28Pin SOIC W Tube

Description

The IR2136/IR21362/IR21363/IR21365/IR21366/IR21367/IR21368J&S are high votage, high speed power MOSFET and IGBT drivers with three independent high and low side referenced output channels for 3-phase applications. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 3.3V logic. A current trip function which terminates all six outputs can be derived from an external current sense resistor. An enable function is available to terminate all six outputs simultaneously.

Features

•Floating channel designed for bootstrap operation

  Fully operational to +600V

  Tolerant to negative transient voltage - dV/dt immune

•Gate drive supply range from 10 to 20V IR2136/IR21368

  11.5 to 20V IR21362 or 12 to 20V IR21363/IR21365/IR21366/IR21367

•Undervoltage lockout for all channels

•Over-current shutdown turns off all six drivers

•Independent 3 half-bridge drivers

•Matched propagation delay for all channels

•Cross-conduction prevention logic

•Lowside outputs out of phase with inputs. High side outputs out of phase IR2136/IR21363/IR21365/

IR21366/IR21367/IR21368 or in phase IR21362 with inputs.

•3.3V logic compatible

•Lower di/dt gate driver for better noise immunity

•Externally programmable delay for automatic fault clear

•Also available LEAD-FREE
