N沟道 500V 16A

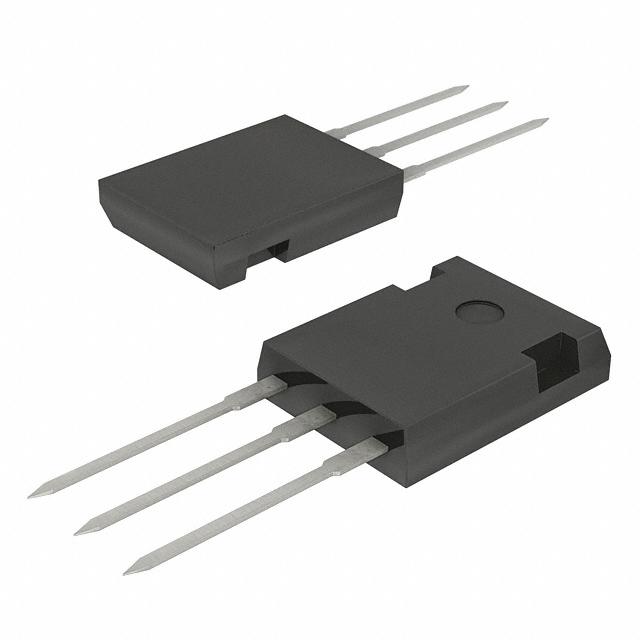

通孔 N 通道 500 V 16A(Tc) 695W(Tc) TO-247-3
得捷:
MOSFET N-CH 500V 16A TO247-3
立创商城:
N沟道 500V 16A
贸泽:
MOSFET N-CH 500V 16A MOSFET
艾睿:
Thanks to Ixys Corporation, both your amplification and switching needs can be taken care of with one component: the IXTH16N50D2 power MOSFET. Its maximum power dissipation is 695000 mW. This N channel MOSFET transistor operates in enhancement mode. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C.
Verical:
Trans MOSFET N-CH 500V 3-Pin3+Tab TO-247
Win Source:
MOSFET N-CH 500V 16A TO-247
通道数 1
漏源极电阻 300 mΩ
极性 N-CH
耗散功率 695 W
漏源极电压Vds 500 V
漏源击穿电压 500 V
上升时间 173 ns
输入电容Ciss 5250pF @25VVds
额定功率Max 695 W
下降时间 220 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 695W Tc
安装方式 Through Hole
引脚数 3
封装 TO-247-3
长度 16.26 mm
宽度 5.3 mm
高度 21.46 mm
封装 TO-247-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
