ICC3PAD2101参数规格_中文资料_数据手册PDF

ICC3PAD2101概述

Switch Push Button N.O. SPST Square Button 5A 48VAC 48VDC Momentary Contact PC Pins Panel Mount/Through Hole

立创商城:
ICC3PAD2101

Powell:

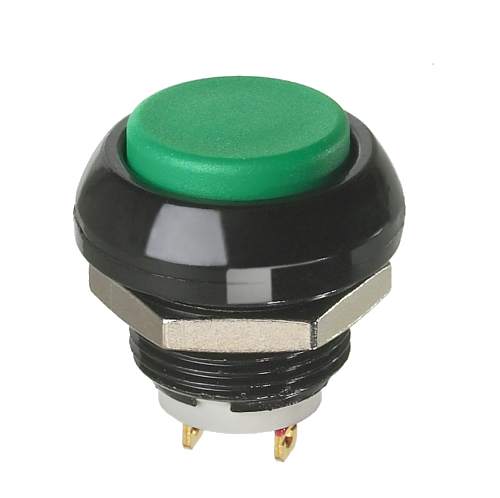

IP67 Sealed Pushbutton Switch

Online Components:
Switch Push Button N.O. SPST Square Button 5A 48VAC 48VDC Momentary Contact PC Pins Panel Mount/Through Hole

Electro Sonic:
Switch Push Button N.O. SPST Square Button 5A 48VAC 48VDC Momentary Contact PC Pins Panel Mount/Through Hole

ICC3PAD2101中文资料参数规格

技术参数

额定电压DC 28 V

额定电压AC 48 V

额定电流 500mA AC, 5A DC

额定电压DC Max 48 V

额定电压AC Max 48 V

接触电阻Max 50 mΩ

封装参数

安装方式 Through Hole

封装 -

外形尺寸

封装 -

物理参数

触点材质 Silver

工作温度 -40℃ ~ 85℃

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买ICC3PAD2101

型号： ICC3PAD2101

制造商： Apem Components

描述：Switch Push Button N.O. SPST Square Button 5A 48VAC 48VDC Momentary Contact PC Pins Panel Mount/Through Hole
