对比图

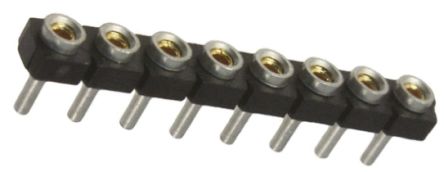

描述 Low Profile 2.54mm Screw Machined Socket Strips - SL SeriesSL series board to board machined through hole single row socket strips with a 2.54mm pitch and a low profile design. The body of these SL series board-to-board PCB socket strips is made from black glass filled polyester and the contacts are made from phosphor bronze with a 0.76μm gold plating and tin shell. The temperature range at which these board to board machined stacking terminals can be used is -55 to +125°C. Part numbers SL-XXX-X-10 have hollow leg contacts with a 3.10mm pin shoulder height. Part numbers SL-XXX-X-12 are micro sockets which have hollow leg contacts with a 2.41mm pin shoulder height.### 注These SL series board-to-board machined socket strips mate with the following: BBL series header terminal strips: see stock number 766-6367 typically. BBS series header terminal strips: see stock number 766-6442 typically. TS series header terminal strips - see stock number 765-6414 typically.### 2.54 mm 板对板和线对板 - SamtecSAMTEC SL-108-TT-12 Board-To-Board Connector, 2.54mm, 8Contacts, Receptacle, SL Series, Through Hole, 1Rows
数据手册 --
制造商 Samtec (申泰电子) Samtec (申泰电子)
分类 插座板对板连接器
安装方式 Through Hole Through Hole
封装 - -
引脚间距 2.54 mm 2.54 mm
触点数 8 8
极性 Female Female
触点电镀 Gold Tin
排数 1 1
针脚数 8 8
额定电流(Max) 1 A 1A/触头
工作温度(Max) 125 ℃ 105 ℃
工作温度(Min) -55 ℃ -55 ℃
接触电阻(Max) 10 mΩ 10 mΩ
额定电流 1 A -
接触电阻 10.0 mΩ -
长度 20.3 mm 20.3 mm
宽度 2.54 mm 2.54 mm
高度 2.41 mm 2.41 mm
封装 - -
引脚间距 2.54 mm 2.54 mm
外壳颜色 Black Black
颜色 Black Black
触点材质 Beryllium Copper Beryllium Copper
工作温度 -55℃ ~ 125℃ -55℃ ~ 105℃
外壳材质 Plastic Plastic
产品生命周期 Active Active
包装方式 Bulk Tube
RoHS标准 RoHS Compliant RoHS Compliant
含铅标准 Lead Free Lead Free
REACH SVHC标准 No SVHC No SVHC
REACH SVHC版本 2014/12/17 2015/06/15
