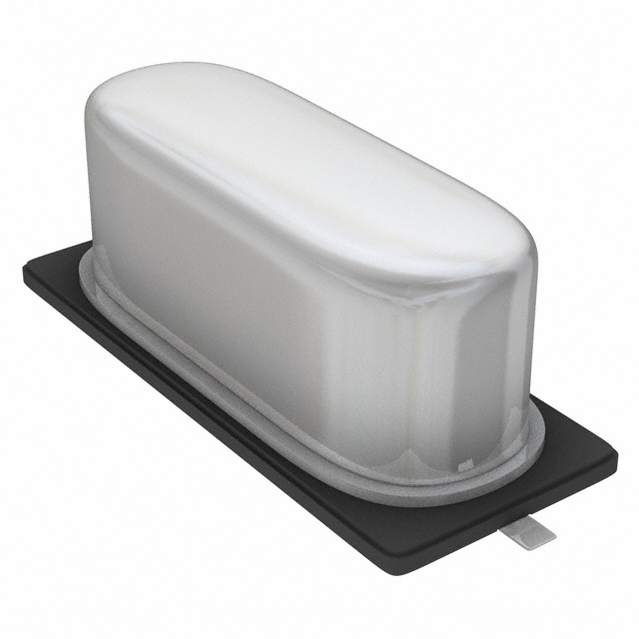

ABRACON ABLS-24.000MHZ-B2-T 晶振, 24MHZ, 18PF, HC-49US
24 MHz ±20ppm 晶体 18pF HC-49/US
欧时:
CRYSTAL 24.0000MHZ 18PF SMD
得捷:
CRYSTAL 24.0000MHZ 18PF SMD
立创商城:
ABLS-24.000MHZ-B2-T
e络盟:
晶振, 24MHZ, 18PF, HC-49US
艾睿:
Crystal 24MHz ±20ppm Tol ±50ppm Stability 18pF FUND 40Ohm 2-Pin HC-49/US SMD T/R
安富利:
Crystal 24MHz 18pF 2-Pin HC49/US T/R
Chip1Stop:
Crystal 24MHz 20ppm Tol 50ppm Stability 18pF FUND 40Ohm 2-Pin HC-49/US SMD T/R
Verical:
Crystal 24MHz ±20ppm Tol ±50ppm Stability 18pF FUND 40Ohm 2-Pin HC-49/US SMD T/R
Newark:
# ABRACON ABLS-24.000MHZ-B2-T Crystal, Low Profile, 24 MHz, SMD, 11.5mm x 4.7mm, 50 ppm, 18 pF, 20 ppm, ABLS Series
频率 24 MHz
频率稳定度 ±50 ppm
频率容差 ±20 ppm
绝缘电阻 500 MΩ
等效串联电阻ESR 40 Ω
负载电容 18 pF
工作温度Max 70 ℃
工作温度Min -20 ℃
安装方式 Surface Mount
引脚数 2
封装 HC-49
长度 11.4 mm
宽度 4.7 mm
高度 4.2 mm
封装 HC-49
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ABLS-24.000MHZ-B2-T Abracon | 当前型号 | 当前型号 |
ABLS-24.000MHZ-B4-T Abracon | 类似代替 | ABLS-24.000MHZ-B2-T和ABLS-24.000MHZ-B4-T的区别 |
ABLS-24.000MHZ-D-R60-1-W-T Abracon | 类似代替 | ABLS-24.000MHZ-B2-T和ABLS-24.000MHZ-D-R60-1-W-T的区别 |
ABLS-24.000MHZ-D2-T Abracon | 功能相似 | ABLS-24.000MHZ-B2-T和ABLS-24.000MHZ-D2-T的区别 |
