IC，Analog DevicesAnalog Devices 的 MEMS 加速表和 iSensor MEMS 加速表子系统可精确检测和测量性能驱动应用中的加速、倾斜、冲击和振动。 将信号调节技术集成到 Analog Devices ADI 的每个 MEMS 加速表、陀螺仪、惯性测量单元 IMU。 单轴和多轴加速表 IC 适用于各种需要测量或监测加速的应用。 可测量由于重力导致的静态加速和由于运动、冲击和振动造成的动态加速。### 加速表，Analog Devices
Product Details
The ADXL278 is a low power, complete, dual-axis accelerometer with signal conditioned voltage outputs that are on a single monolithic IC. This product measures acceleration with a full-scale range of X-axis/Y-axis ±35 _g_/±35 _g_, ±50 _g_/ ±50 _g_, or ±70 _g_/±35 _g_ minimum. The ADXL278 can also measure both dynamic acceleration vibration and static acceleration gravity.
The ADXL278 is the fourth-generation surface micromachined _i_MEMS® accelerometer from with enhanced performance and lower cost. Designed for use in front and side impact airbag applications, this product also provides a complete cost-effective solution useful for a wide variety of other applications.
The ADXL278 is temperature stable and accurate over the automotive temperature range, with a self-test feature that fully exercises all the mechanical and electrical elements of the sensor with a digital signal applied to a single pin.

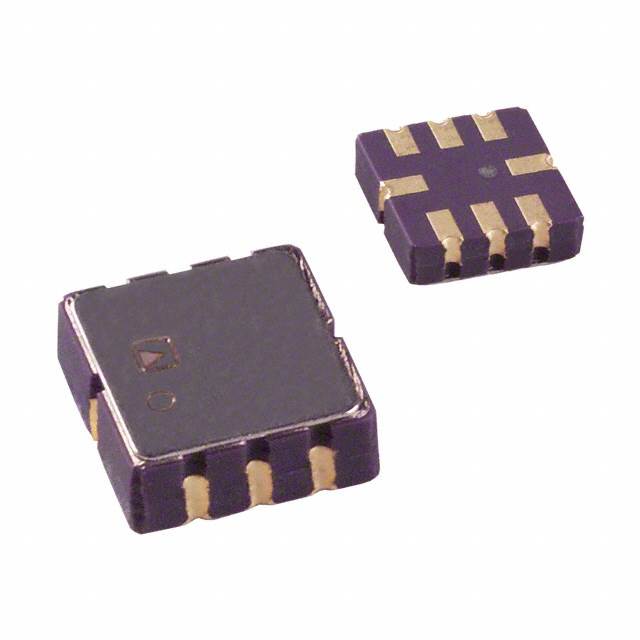

The ADXL278 is available in a 5 mm × 5 mm × 2 mm, 8-terminal ceramic LCC package.
**Applications**
- .
- Vibration monitoring and control
- .
- Vehicle collision sensing
- .
- Shock Detection
### Features and Benefits
- .
- Complete dual-axis acceleration measurement system on a single monolithic IC
- .
- Available in ±35g/±35g, ±50g/±50g, and ±70g/±35g output full-scale ranges
- .
- Full Differential Sensor & Circuitry for High Resistance to EMI/RFI
- .
- Environmentally robust packaging
- .
- Complete Mechanical and Electrical Self-test on Digital Command
- .
- Output Ratiometric to Supply
- .
- Sensitive Axis in the Plane of the Chip
- .
- See data sheet for additional features
