A-20G-B7-K概述

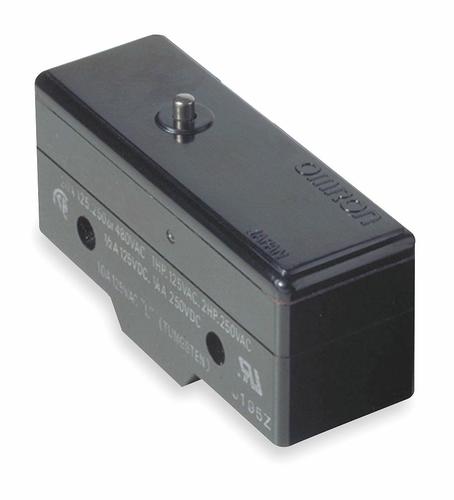

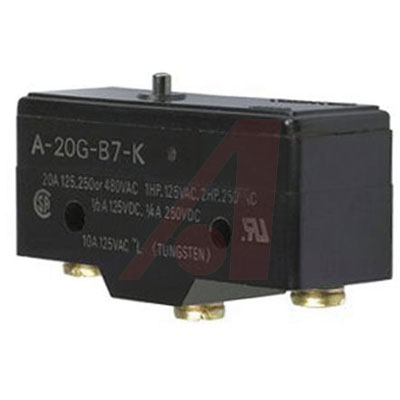

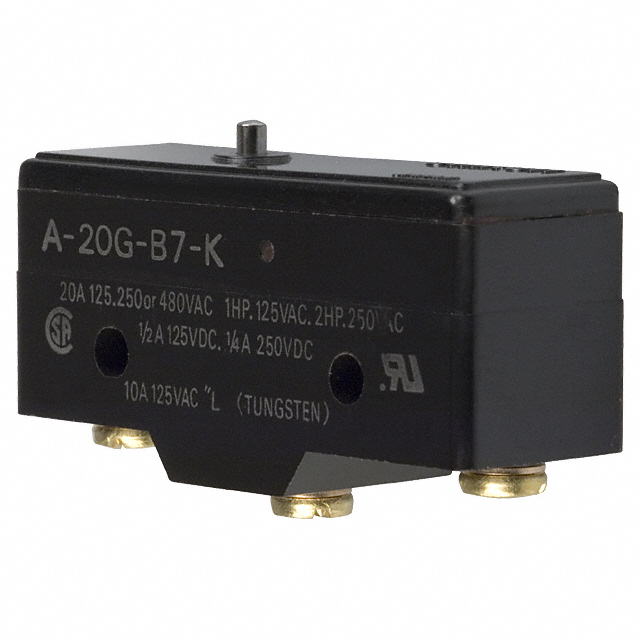

Switch Snap Action N.O./N.C. SPDT Pin Plunger Screw 20A 480VAC 250VDC 1491.4VA 6.12N Screw Mount
**Ratings:** non-inductive, resistive; 20 A @ 125/250 VAC, 15 A @ 500 VAC, 0.5 A @ 125 VDC, 0.25 A @ 250 VDC. Screw terminals. **Body Size:** 49.2 × 17.5 × 24.2 mm 1.94" × 0.69" × 0.95". UL Recognized and CSA Approved.
**Features
**
* High-Capacity SPDT Switch Capable of Handling 20 Amp Loads with Large Inrush Currents**
**
* Switches Loads Such as Motors, Halogen Lamps, and Solenoids Directly**
**
* Same Shape as Z-Series Except Pin Plunger Position, Yet Endures Inrush Currents as Large as 75 Amps
