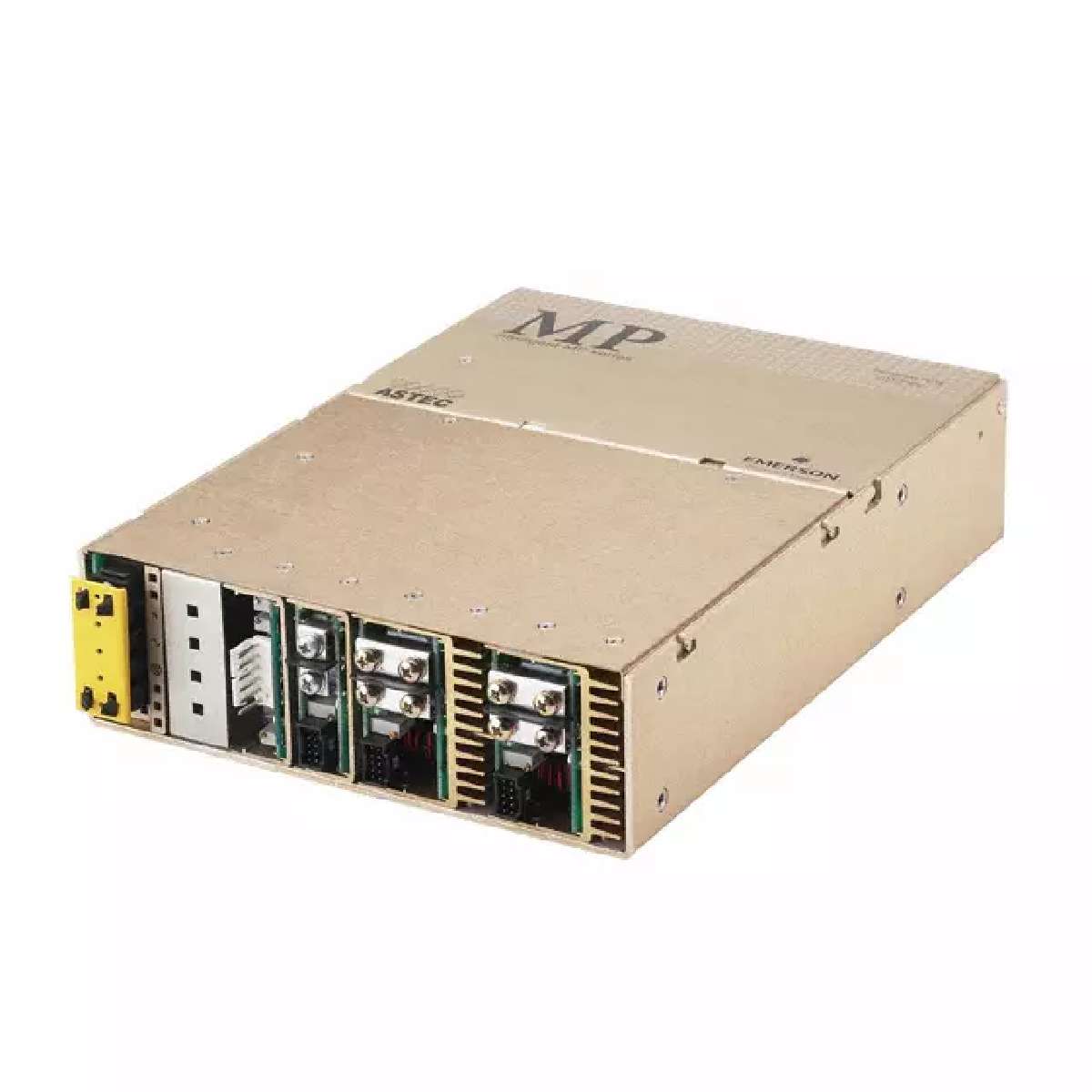

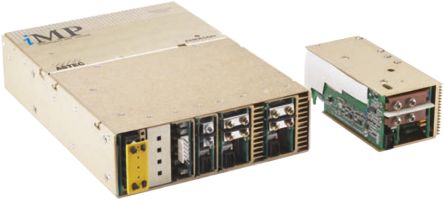

Switch Mode - Astec Intelligent Configurable iMP Series
Intelligent MP series with digital control IC Control
Full Medical EN60601-1 Approval
Configurable Current Share on all outputs >10A
Voltage adjustment on all outputs Manual or IC
All outputs are floating either positive or negative, and fully isolated
Configurable Input and Output OK signals, indicators, Inhibit/Enable and Output UP/DOWN sequencing
Intelligent cooling fan speed control/fault status
μP Controlled PFC input with active Inrush protection
IC monitor of Voltage, Current, and Temp IPMI Compliant
Programmable Current Limit and Inhibit/Enable through IC
Backward Compatibility with standard MP Series
EMC meets EN 55022 Class B
Overcurrent, overvoltage, thermal overload and short circuit protection
550,000 hours demonstrated MTBF
EN61000-3-2 compliant
USB to IC adapter kit available separately
### 注
Derate each output 2.5% per °C from +50°C to +70°C. Dimensions exclude terminal blocks.
### 认可
TUV, CB, UL recognised component for US
### 标准
UL 60950, UL2601, CSA22.2 No. 234 level 5, EN 60950, EN60601-1
