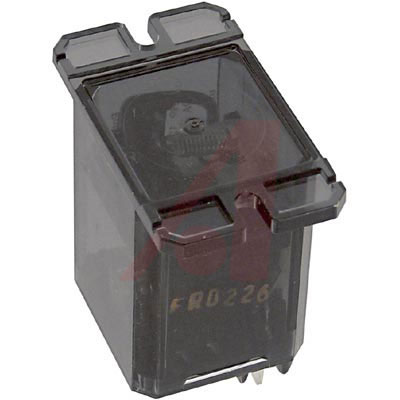

TE CONNECTIVITY / POTTER & BRUMFIELD KUHP-5DT1-12 功率继电器
Continuous Duty Cycle, KUHP Series 30 A Power Relay
** KUHP Series** relays are an extension of the KUP product line, offering 30 amp switching capability in a 1 Form C SPDT configuration and 20 amp switching capability in a 2 Form C DPDT configuration. This relay has been designed to meet the requirements of international regulatory agencies such as BSI and VDE for many applications. Enclosed KUHP relays are equipped with slotted flanges for bracket mounting to a chassis. Termination to this relay is normally facilitated by 0.250" 6.35 mm push-on terminals or by solder connection. Contact material for the KUHP is silver-cadmium oxide.
额定电压DC 12.0 V
额定电压AC 240 V
额定电流 30 A
额定功率 1.20 W
输入电压DC 12.0 V
触点类型 SPDT
功耗 1.20 W
触点额定电流 30 A
线圈电压 12 VDC
线圈电流 100 mA
线圈功率DC 1.20 W
线圈电阻 120 Ω
载流 30.0 A
额定电流Max 30 A
线圈电压DC 12 V
线圈功率 1.2 W
开关电流Max 30 A
工作温度Max 70 ℃
工作温度Min -45 ℃
额定电压 240 VAC
安装方式 Panel
引脚数 9
长度 60.5 mm
宽度 62.51 mm
高度 62.51 mm
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Not Applicable
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
