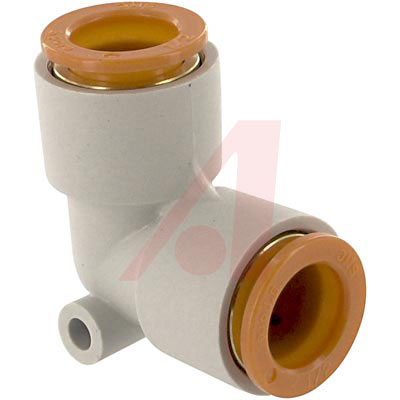

Fitting, Pneumatic; 1/2in.; 29in.; 9in.; 21.7in.; 1.0 MPa Max.; -5℃
Series KQ2 one-touch fittings IN/OUT connections accept nylon, soft nylon and polyurethane tubes, and have a high retaining force. They can be used for a wide range of pressure from a low vacuum up to a pressure of 145 psi 1.0 MPa. The use of a special profile ensures resistance when the tube is being inserted and its release button allows for a low disconnecting force. Series KQ2 one-touch fittings are effective when piping in a confined space.
**Features:**
* New Engineered Anchor Grip Seal
* Easy Insertion
* Quick Disconnect
* Same Strong Hold
长度 736.6 mm
重量 18 g
Brand/Series KQ2 Series
Color Orange | White
Diameter, Connection 21.70 in.
Diameter, Hole 9 in.
Diameter, Tube 1⁄2 in.
Length 29" 736.6mm
Material, Body Plastic
Material, Gasket PVC
Operating Fluid Air, Water
Pressure, Operating 1.0 MPa Max.
Proof Pressure 3 MPa
Size, Tube 1/2 "
Standards RoHs Compliance
Temperature, Ambient, Maximum 60 °C
Temperature, Ambient, Minimum -5 °C
Type Elbow-Union
Weight 18 g
RoHS标准 RoHS Compliant
