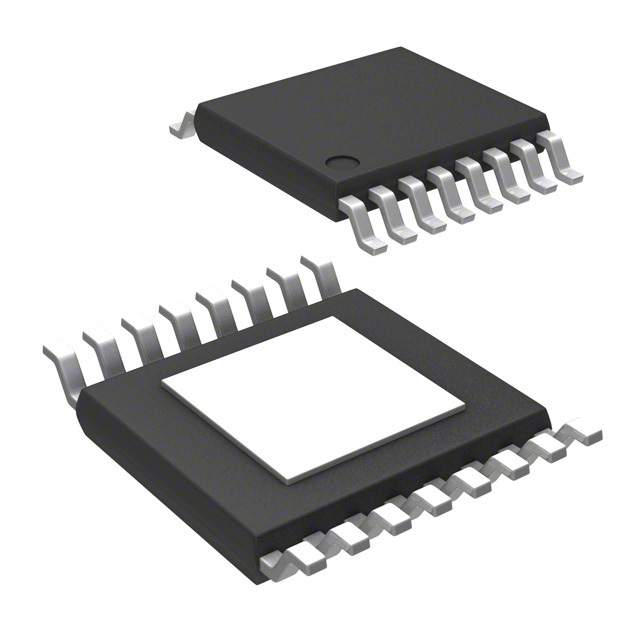

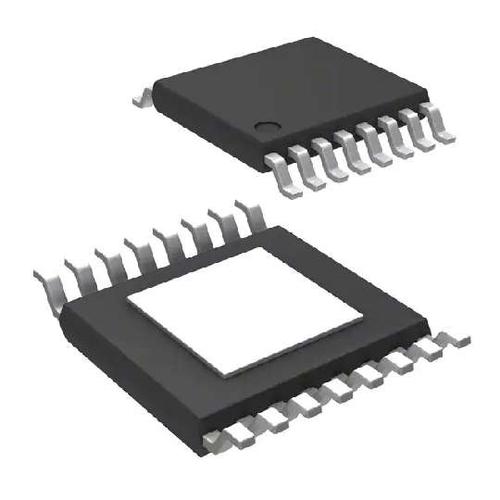

LM5088MHX-1/NOPB 编带
降压 稳压器 正 输出 降压 - DC DC 切换控制器 IC 16-HTSSOP
立创商城:
降压型 4.5V~75V 1MHz
得捷:
IC REG CTRLR BUCK 16HTSSOP
德州仪器TI:
4.5-75V Wide Vin, Current Mode Non-Synchronous Buck Controller
艾睿:
The buck /pwm dc to dc controller LM5088MHX-1/NOPB DC voltage controller from Texas Instruments is a highly-efficient tool that can give you the ability to change the voltage within your circuit. Its output produces a current of 10 A. This DC voltage controller has single output. With an output that has a voltage of 1.205 to 70 V, this is power management at its best. This DC voltage controller has an input voltage of 4.5 to 75 V. It has a switching frequency of 50 to 1000 kHz. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
DC DC Cntrlr Single-OUT Buck Controller/PWM DC to DC Controller 4.5V to 75V Input 16-Pin TSSOP EP T/R
Chip1Stop:
DC DC Cntrlr Single-OUT Buck Controller/PWM DC to DC Controller 4.5V to 75V Input 16-Pin HTSSOP EP T/R
Verical:
DC DC Cntrlr Single-OUT Buck Controller/PWM DC to DC Controller 4.5V to 75V Input 16-Pin HTSSOP EP T/R
输出接口数 1
输出电压 1.205V ~ 70V
输出电流 10 A
静态电流 3.80 mA
调节输出数 1
开关频率 50kHz ~ 1MHz
拓扑结构 Buck
输入电压Max 75 V
输入电压Min 4.5 V
最大占空比 94 %
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 8.3V ~ 13V
输入电压 4.5V ~ 75V
引脚数 16
封装 TSSOP-16
封装 TSSOP-16
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM5088MHX-1/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM5088MH-1/NOPB 德州仪器 | 类似代替 | LM5088MHX-1/NOPB和LM5088MH-1/NOPB的区别 |
