Texas Instruments一系列集成降压(降压)直流-直流控制器,用于需要使用外部电源 MOSFET 来实现完整开关调节器设计的应用。### 直流/直流控制器(外部开关),Texas Instruments
直流/直流降压(降压)控制器(外部开关),Texas Instruments
一系列集成降压(降压)直流-直流控制器,用于需要使用外部电源 MOSFET 来实现完整开关调节器设计的应用。
### 直流/直流控制器(外部开关),Texas Instruments
得捷:
IC REG CTRLR BUCK 16WQFN
立创商城:
降压型 3V~20V 1.2MHz
德州仪器TI:
3-V to 20-V, voltage mode synchronous buck controller with DCR current sensing
欧时:
Texas Instruments LM27402SQ/NOPB 直流-直流降压控制器, 20 V 降压, 1.2 MHz, 16引脚 WQFN封装
艾睿:
Texas Instruments brings you their latest synchronous buck LM27402SQ/NOPB DC voltage controller, a device that has the ability to properly change the DC voltage across your circuit. This DC voltage controller has single output. This DC voltage controller has an input voltage of 3 to 20 V. It has a switching frequency of 200 to 1200 kHz. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
LDO Cntrlr SYNC BUCK REG 0.6V to 18.6V 16-Pin LLP EP T/R
Chip1Stop:
DC DC Cntrlr Single-OUT Sync Buck 3V to 20V Input 16-Pin WQFN EP T/R
Verical:
DC DC Cntrlr Single-OUT Sync Buck 3V to 20V Input 16-Pin WQFN EP T/R
Newark:
# TEXAS INSTRUMENTS LM27402SQ/NOPB DC/DC Controller with DCR Current Sensing, 3V to 20V, 1 Output, Synchronous Buck, 1.35MHz, LLP-16
DeviceMart:
IC REG CTRLR BUCK PWM VM 16-LLP
电源电压DC 3.00V min
输出接口数 1
输出电压 0.6V ~ 18.6V
输出电流 30000 mA
静态电流 4.50 mA
调节输出数 1
开关频率 200kHz ~ 1.2MHz
拓扑结构 Buck
占空比 95 %
输入电压Max 20 V
输入电压Min 3 V
最大占空比 0.95
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 3V ~ 20V
电源电压Max 20 V
电源电压Min 3 V
输入电压 3V ~ 20V
安装方式 Surface Mount
引脚数 16

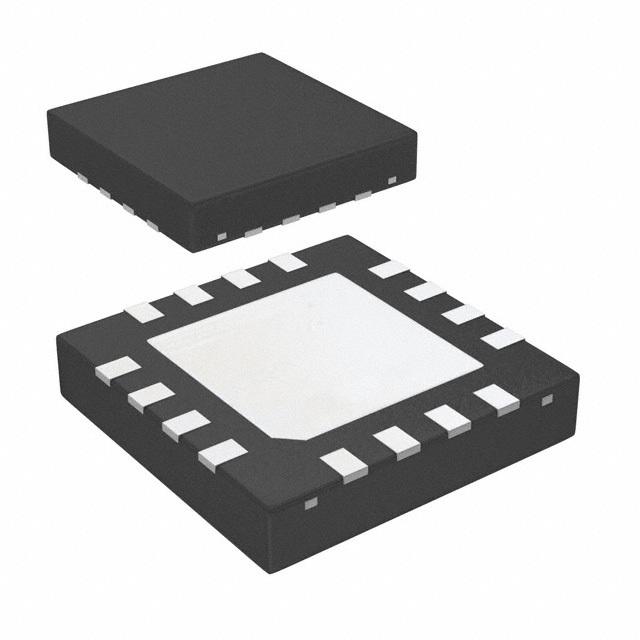

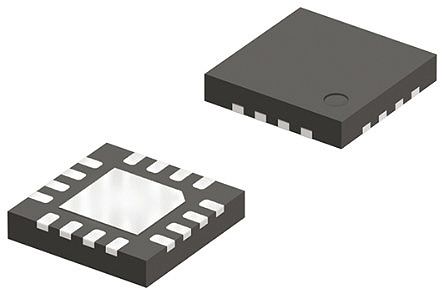

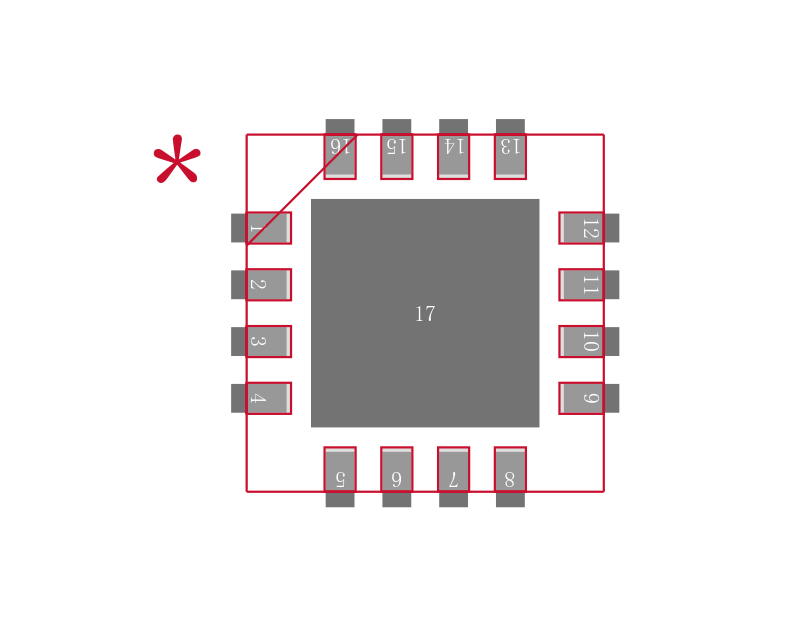

封装 WQFN-16

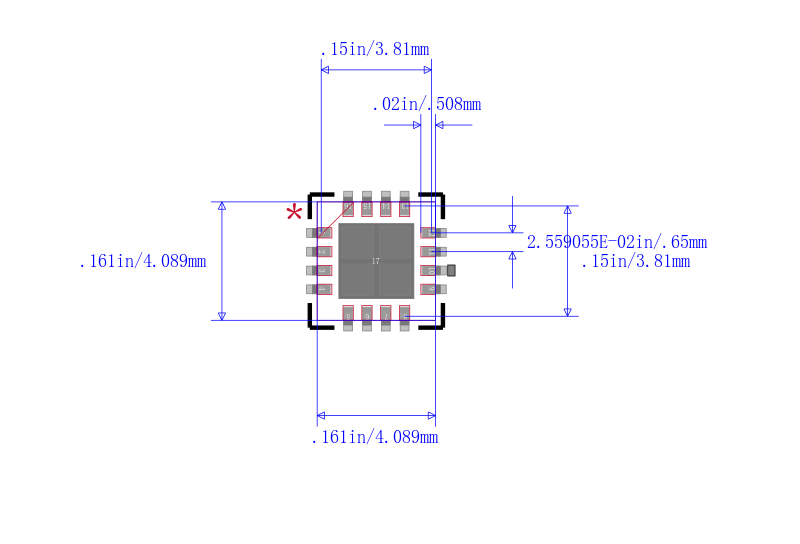

长度 4 mm
宽度 4 mm
高度 0.8 mm
封装 WQFN-16
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM27402SQ/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM27402SQX/NOPB 德州仪器 | 完全替代 | LM27402SQ/NOPB和LM27402SQX/NOPB的区别 |
