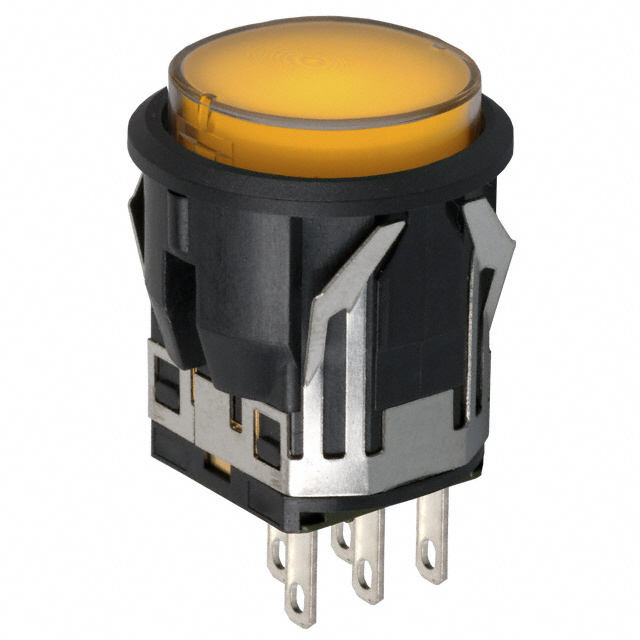

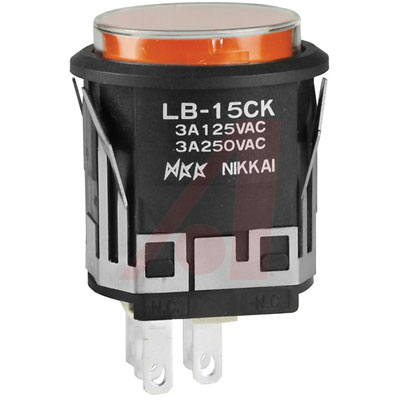

NKK SWITCHES LB15CKW01-5D-JD 按钮开关, 发光, SPDT, 3A, 250V
This miniature pushbutton switch is available in momentary or latching actions. Choice of square, round or rectangular bezels and caps to fit panel design. Bright LED lamp may be changed from the front of the panel. Snap-action mechanism provides audible and tactile feedback. Molded terminals seal out flux, dust and other contaminants.
立创商城:
LB15CKW01-5D-JD
艾睿:
Ideal for low current and low voltage circuits, this LB15CKW01-5D-JD push button switch from NKK Switches will allow you to switch from connected to disconnected state. This device has a maximum current rating of 3 A @ 250VAC 30VDC. It has a SPDT configuration. This push switch has a minimum operating temperature of -25 °C and a maximum of 50 °C. The LB15CKW01-5D-JD push switch has a quick connect/solder lug termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC. This product is 23.7 mm long, 34 mm tall and 23.7 mm deep.
Allied Electronics:
Switch; P/B; SPDT; ON-ON; Rnd; Blk Body; Amber LED; 2V; Clr/Amber Cap; 3A; 125VAC; QC
Newark:
# NKK SWITCHES LB15CKW01-5D-JD Illuminated Pushbutton Switch, SPDT, On-On, 3 A, 250 V, Amber
Powell:
STD SIZE PUSHBUTTON/ILLUMINATED/SNAP-IN
触点电镀 Silver
接触器类型 Button
额定电压AC 250 V
额定电流 3 A
排数 1
方向 Vertical
触点类型 SPDT
触点额定电流 3.00 A
额定电流Max 3A @250VAC, 30VDC
工作温度Max 50 ℃
工作温度Min -25 ℃
额定电压 125 VAC
额定电压DC Max 30 V
额定电压AC Max 250 V
接触电阻Max 50 mΩ
安装方式 Lug, Panel
封装 -
高度 34 mm
直径 21.7 mm
封装 -
触点材质 Silver Alloy
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
