LTC6946IUFD-4#PBF

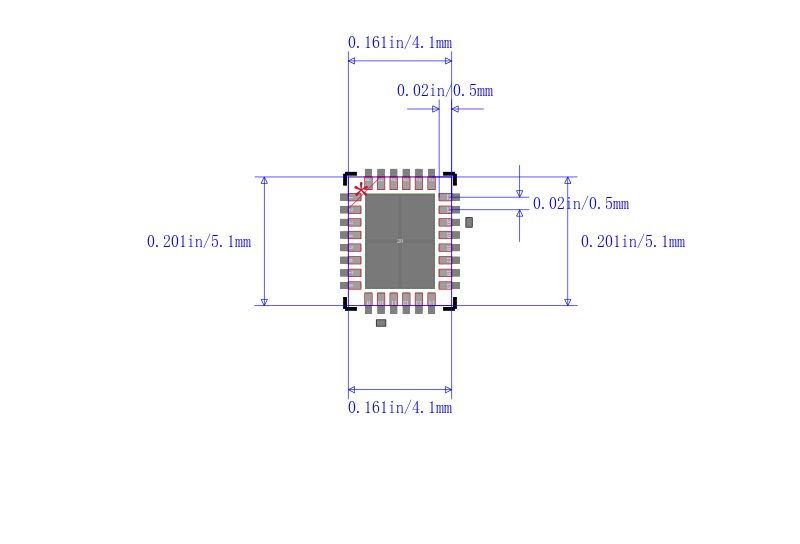

LINEAR TECHNOLOGY  LTC6946IUFD-4#PBF  芯片

The is a high performance low noise 6.39GHz Phase-locked Loop PLL with a fully integrated VCO, including a reference divider, phase-frequency detector PFD with phase-lock indicator, ultralow noise charge pump, integer feedback divider and VCO output divider. The charge pump contains selectable high and low voltage clamps useful for VCO monitoring. The integrated low noise VCO uses no external components. It is internally calibrated to the correct output frequency with no external system support. The part features a buffered, programmable VCO output divider with a range of 1 through 6, providing a wide frequency range.

.

Excellent spurious performance

.

Output divider 1 to 6, 50% duty cycle

.

Output buffer muting

.

Low noise reference buffer

.

Charge pump current adjustable from 250µA to 11.2mA

.

Configurable status output

.

SPI compatible serial port control

.

PLLWizard™ software design tool support
