LQH55DN151M03L

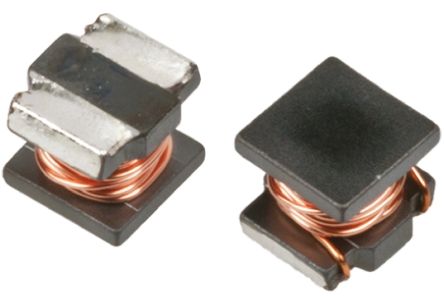

MURATA  LQH55DN151M03L  表面贴装高频电感器, LQH55D系列, 150 µH, ± 20%, 2220 [5650 公制], 5 MHz, 1.9 ohm

固定器

得捷:
FIXED IND 150UH 420MA 2.66OHM SM

立创商城:
150uH ±20% 1.9Ω

欧时:
### Murata 2220 LQH55D 系列线绕扼流圈LQH55D 系列线绕电感器，用于扼流圈应用 使用高性能厚线绕技术。 低直流电阻、大电流容量和大电感 用于直流-直流转换器和直流电源电路 ### 表面安装 2220 电感器（扼流圈）

贸泽:
Fixed Inductors 150uH 20%

e络盟:
高频电感器, 150 µH, LQH55D系列, 420 mA, 2220 [5650 公制], 绕线, 1.9 ohm

艾睿:
Use this power chip LQH55DN151M03L surface mount inductor from Murata to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -40 °C to 80 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device utilizes wirewound technology. It has an inductance of 150u H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 5M Hz. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 420m A with a maximum resistance of 2.66 Ohm. This product is 6 mm long, 5 mm tall and 5.3 mm deep.

安富利:
Ind Power Chip Unshielded Wirewound 150uH 20% 100KHz Ferrite 420mA 2220 Embossed T/R

Chip1Stop:
Inductor Power Chip Unshielded Wirewound 150uH 20% 100KHz Ferrite 420mA 2.66Ohm DCR 2220 Embossed T/R

Verical:
Inductor Power Chip Unshielded Wirewound 150uH 20% 100KHz Ferrite 0.42A 2.66Ohm DCR 2220 T/R

Newark:
# MURATA  LQH55DN151M03L  Surface Mount High Frequency Inductor, LQH55D Series, 150 µH, 420 mA, 2220 [5650 Metric], Wirewound

儒卓力:
**LQH55DN 150uH 420mA 20% WWT **

Win Source:
150μH Unshielded Wirewound Inductor 420mA 2.66 Ohm Max 2220 5750 Metric
