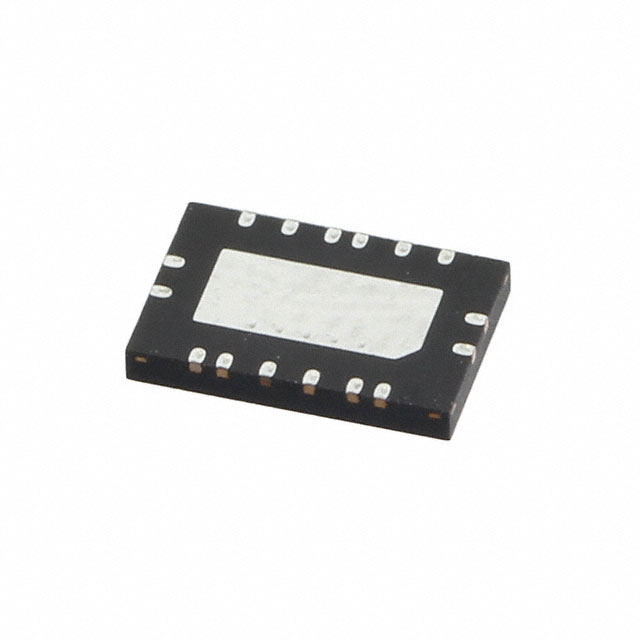

LINEAR TECHNOLOGY LTC6091HUFE#PBF 运算放大器, 双路, 12 MHz, 2个放大器, 21 V/µs, 9.5V 至 140V, ± 4.75V 至 ± 70V, QFN, 16 引脚
The is a dual high voltage precision Operational Amplifier for use with photodiode amplifier. The low noise/bias current input stage is ideal for high gain configurations. The LTC6091 has low input offset voltage, a rail-to-rail output stage and can be run from a single 140V or split ±70V supplies. The LTC6091 is internally protected against over-temperature conditions. A thermal warning output, TFLAG, goes active when the die temperature approaches 150°C. The output stage can be turned off with the output disable pin OD. By tying the OD pin to the thermal warning output, the part will disable the output stage when it is out of the safe operating area. These pins easily interface to any logic family. The LTC6091 is unity-gain stable with up to a 200pF output capacitor. A wide input and output common mode range along with many features makes the LTC6091 useful for many high voltage applications.
供电电流 2.8 mA
电路数 2
针脚数 16
带宽 12 MHz
转换速率 21.0 V/μs
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 16
封装 QFN-32
封装 QFN-32
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 信号处理, Signal Processing
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC6091HUFE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC6091HUFE#TRPBF 凌力尔特 | 功能相似 | LTC6091HUFE#PBF和LTC6091HUFE#TRPBF的区别 |
