LDO(低压降)线性稳压器,1.5A,LP38xx/LP39xx系列,Texas Instruments### LDO(低压降)线性稳压器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,1.5A,LP38xx/LP39xx系列,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:

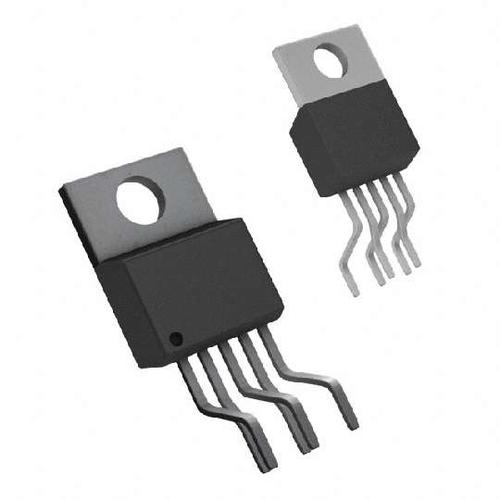

IC REG LINEAR 3.3V 1.5A TO220-5
立创商城:
LP3965ET-3.3/NOPB
德州仪器TI:
1.5-A, low-dropout voltage regulator with sense & enable
欧时:
Texas Instruments LP3965ET-3.3/NOPB LDO 稳压器, 3.3 V输出, 1.5A最大输出, ±1.5%精确度
贸泽:
LDO Voltage Regulators 1.5A Fast Ultra LDO Linear Reg
艾睿:
Control the voltage level of your circuit with this LDO LP3965ET-3.3/NOPB linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.038@150mA|0.38@1500mA V. It has an overall accuracy of ±1.5 %. This voltage regulation device&s;s single output can produce a current up to 1.5 A. It only needs a voltage of at least 2.5 V while not exceeding 7 V to effectively power your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.04%Typ and line regulation of 0.02%Typ. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its polarity is positive. The maximum dropout voltage is 0.045@150mA|0.45@1500mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
LDO Regulator Pos 3.3V 1.5A 5-Pin5+Tab TO-220 Rail
Verical:
LDO Regulator Pos 3.3V 1.5A 5-Pin5+Tab TO-220 Tube
DeviceMart:
IC REG LDO 3.3V 1.5A TO-220-5
输出接口数 1
输出电压 3.3 V
输出电流 1.5 A
静态电流 4.00 mA
输出电容类型 Ceramic
跌落电压 380 mV
调节输出数 1
输入电压Max 7 V
输入电压Min 2.5 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.5 %
输入电压 ≤7 V
安装方式 Through Hole
引脚数 5
封装 TO-220-5
长度 10.16 mm
宽度 4.57 mm
高度 8.64 mm
封装 TO-220-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3965ET-3.3/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3965ET-3.3/LB04 德州仪器 | 完全替代 | LP3965ET-3.3/NOPB和LP3965ET-3.3/LB04的区别 |
LP3965ET-3.3 德州仪器 | 类似代替 | LP3965ET-3.3/NOPB和LP3965ET-3.3的区别 |
