LT4321IUF#PBF

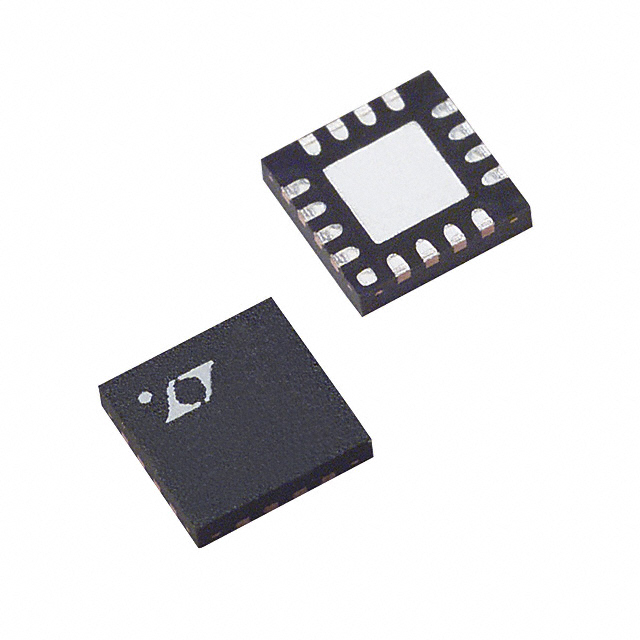

LINEAR TECHNOLOGY  LT4321IUF#PBF  芯片, 二极管桥接控制器, QFN-16

The is a dual Ideal Diode Bridge Controller that enables a power over Ethernet PoE powered device PD to receive power in either voltage polarity from RJ-45 data pairs, spare pairs or both. The LT4321 and eight N-channel MOSFETs replace the eight diodes in a passive PoE rectifier bridge. The LT4321 eases thermal design and increases delivered power. An internal charge pump allows an all-NMOS bridge eliminating larger and more costly PMOS switches. High impedance input sense pins prevent reverse current on unused pairs. If the power source fails or is shorted, a fast turn-OFF minimizes reverse current transients. Unlike discrete ideal bridge solutions, the LT4321 will operate through transients without enabling the MOSFETs on unpowered pairs.

.

Reduces heat, eliminates thermal design problems

.

Maximizes power efficiency

.

Less than 800µA quiescent operating current

.

Fully compatible with IEEE 802.3 detection and classification

.

IEEE 802.3 compliant when paired with a Powered Device PD controller

.

Works with 2-pair and 4-pair PoE applications

.

Compatible with PoE, PoE+ and LTPoE++™

.

Green product and no Sb/Br
