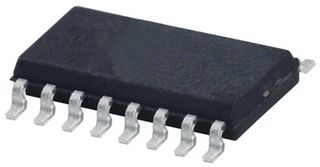

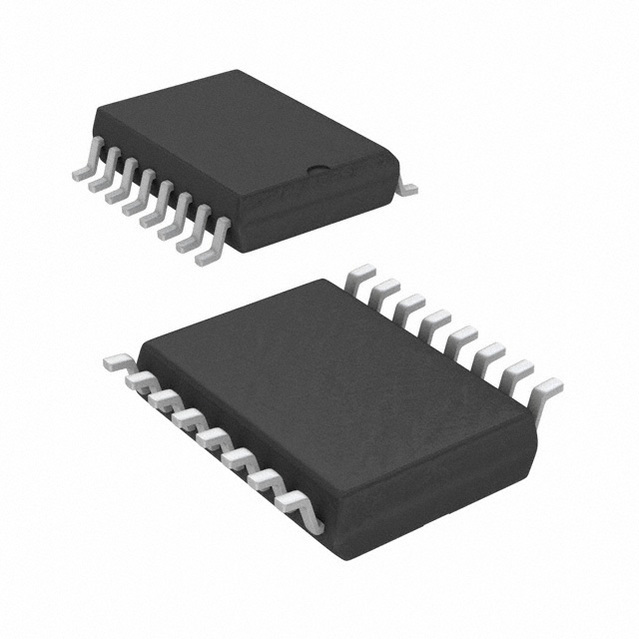

Processor Supervisor 4.65V 4.65V 16Pin SOIC W
By using this microprocessor supervisory circuit from you won"t have to worry if something happens to your main processor. This device has a maximum power dissipation of 500 mW. Its maximum power dissipation is 500 mW. It has a typical reset threshold voltage of 4.65 V, with a minimum of 4.5 V and a maximum of 4.75 V. This part has a minimum operating temperature of 0 °C and a maximum of 70 °C. This device has a minimum operating supply voltage of 4.75 V and a maximum of 5.5 V.
电源电压DC 4.75V min
供电电流 2.5 mA
时钟频率 250 MHz
耗散功率 500 mW
阈值电压 4.65 V
复位电压Min 4.5 V
复位电压Max 4.75 V
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 500 mW
电源电压 4.75V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
封装 SOIC-16
工作温度 0℃ ~ 70℃ TA
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC691CSW#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC691ISW#PBF 凌力尔特 | 类似代替 | LTC691CSW#PBF和LTC691ISW#PBF的区别 |
LTC691CSW#TRPBF 凌力尔特 | 类似代替 | LTC691CSW#PBF和LTC691CSW#TRPBF的区别 |
ADM693ANZ 亚德诺 | 功能相似 | LTC691CSW#PBF和ADM693ANZ的区别 |
