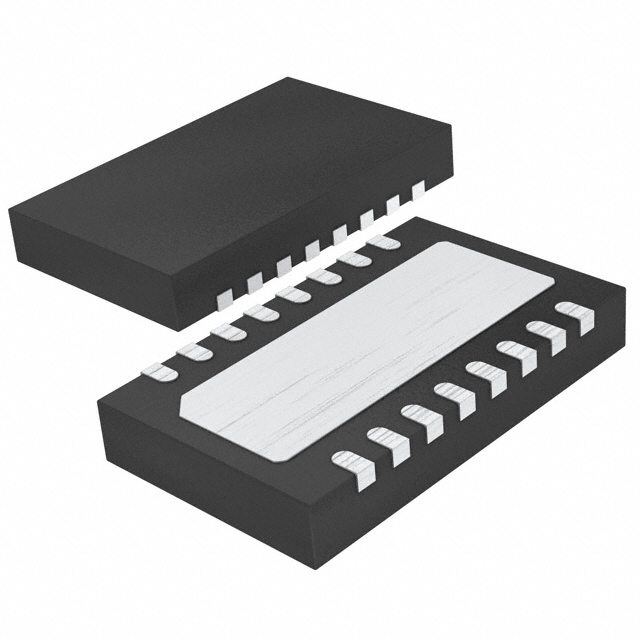

LTC4217IDHC#PBF

LINEAR TECHNOLOGY  LTC4217IDHC#PBF  芯片, 热插拔控制器, 12V, 16DFN

The is a 2A integrated Hot Swap Controller that allows a board to be safely inserted and removed from a live backplane. The part integrates a Hot Swap controller, power MOSFET and current sense resistor in a single package for small form factor applications. It allows adjustable thresholds. It provides separate inrush current control and a 5% accurate 2A current limit with foldback current limiting. The current limit threshold can be adjusted dynamically using an external pin. Additional features include a current monitor output that amplifies the sense resistor voltage for ground referenced current sensing and a MOSFET temperature monitor output. Thermal limit, overvoltage, undervoltage and power good monitoring are also provided.

.

33mR MOSFET with RSENSE

.

5% Accurate adjustable current limit

.

Current and temperature monitor outputs

.

Overtemperature protection

.

Adjustable current limit timer before fault

.

Power good and fault outputs

.

Adjustable inrush current control

.

2% Accurate undervoltage and overvoltage protection
