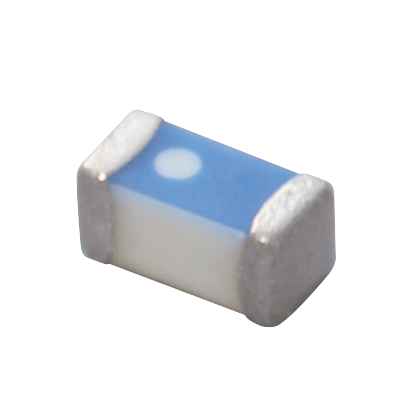

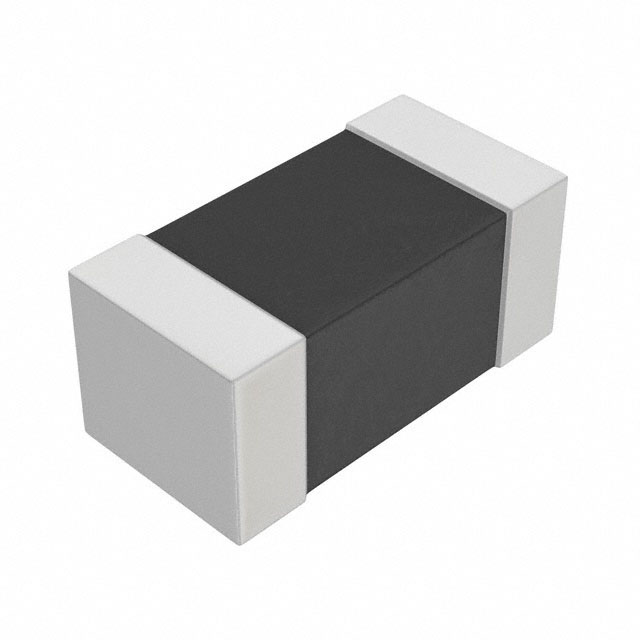

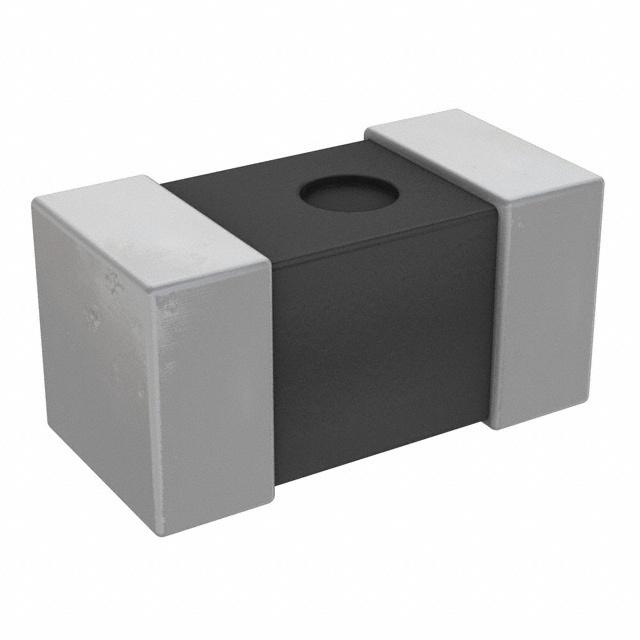

片式电感器(片状线圈),高频薄膜型 Chip Inductor Chip Coil for High Frequency Film Type
2 nH 无屏蔽 厚膜 器 600 mA 150 毫欧最大 0201(0603 公制)
立创商城:
2nH ±0.2nH 150mΩ
得捷:
FIXED IND 2NH 600MA 150 MOHM SMD
艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this rf chip LQP03TN2N0C02D surface mount inductor from Murata to save valuable space. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This SMD inductor has a maximum DC current of 600m A with a maximum resistance of 150m Ohm. It has an inductance of 2n H. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 12.5G Hz. This device is made with thin film technology.
Chip1Stop:
Inductor RF Chip Thin Film 2nH 0.2nH 500MHz 14Q-Factor 600mA 150mOhm DCR 0201 T/R
Verical:
Inductor RF Chip Unshielded Thin Film 0.002uH 0.2nH 500MHz 14Q-Factor Non Magnetic 0.6A 0.15Ohm DCR 0201 T/R
Win Source:
FIXED IND 2NH 600MA 150 MOHM SMD
额定电流 600 mA
电感 2 nH
自谐频率 12.5 GHz
产品系列 LQP
电感公差 ±0.2 nH
测试频率 500 MHz
电阻DC) ≤150 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 0.15 Ω
安装方式 Surface Mount
封装 0201
长度 0.6 mm
宽度 0.3 mm
高度 0.33 mm
封装 0201
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 15000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
