LQW2BAS2N8J00L

2.8nH ±5%

2.8 nH 无屏蔽 绕线 器 800 mA 60 毫欧最大 0805（2015 公制）

得捷:
FIXED IND 2.8NH 800MA 60MOHM SMD

贸泽:
Fixed Inductors 0805, 2.8nH , 800mA SRF 12200MHz, 5%

艾睿:

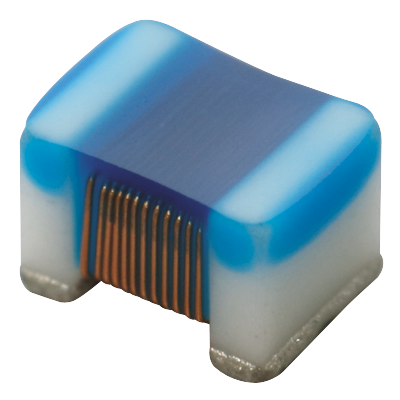

This rf chip LQW2BAS2N8J00L surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has an inductance of 2.8n H. This product is 2.29 mm long, 1.52 mm tall and 1.73 mm deep. This SMD inductor has a maximum DC current of 800m A with a maximum resistance of 60m Ohm. Its test frequency is 250M Hz, while its minimum self-resonant frequency is 12.2G Hz. It has a tolerance of 5%. This device utilizes wirewound technology.
