39nH ±5%
39nH Unshielded Wirewound Inductor 500mA 290mOhm Max 0805 2015 Metric
得捷:
FIXED IND 39NH 500MA 290MOHM SMD
立创商城:
39nH ±5% 290mΩ
艾睿:

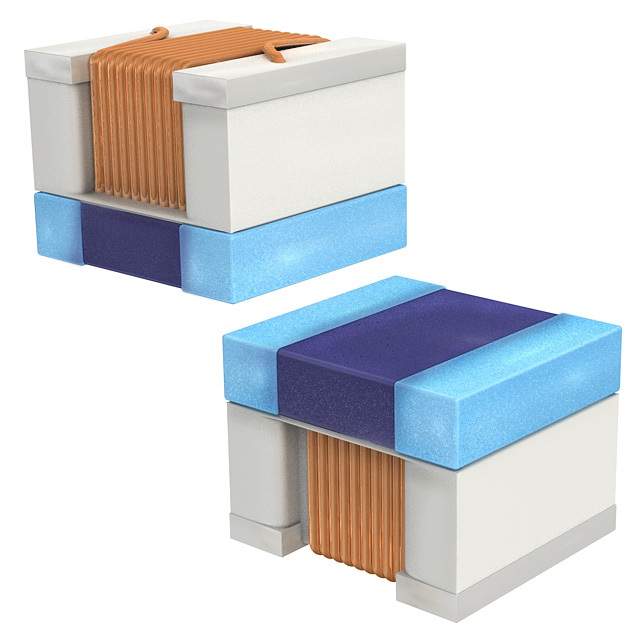

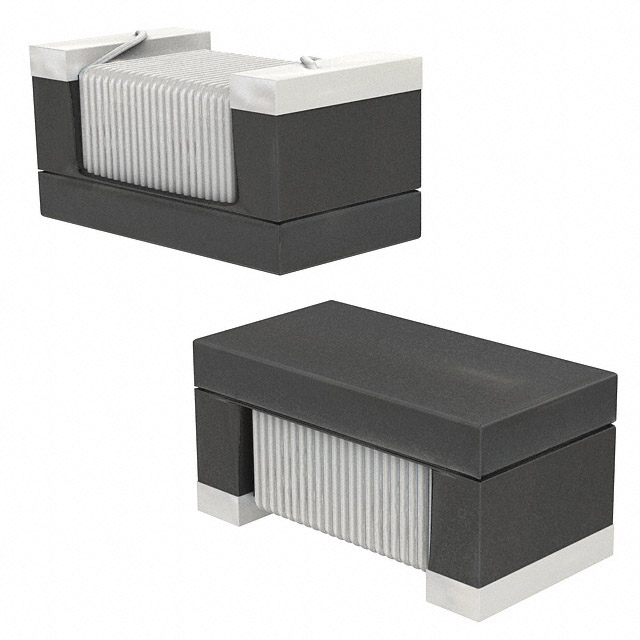

Use this rf chip LQW2BAS39NJ00L surface mount inductor from Murata to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -55 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a tolerance of 5%. This device utilizes wirewound technology. Its test frequency is 250M Hz, while its minimum self-resonant frequency is 2G Hz. It has an inductance of 39n H. This product is 2.29 mm long, 1.52 mm tall and 1.73 mm deep. This SMD inductor has a maximum DC current of 500m A with a maximum resistance of 290m Ohm.
安富利:
Ind RF Chip Wirewound 39nH 5% 250MHz 60Q-Factor 500mA 0805 Embossed T/R
Verical:
Inductor RF Chip Unshielded Wirewound 0.039uH 5% 250MHz 60Q-Factor Non Magnetic 0.5A 0.29Ohm DCR 0805 T/R
