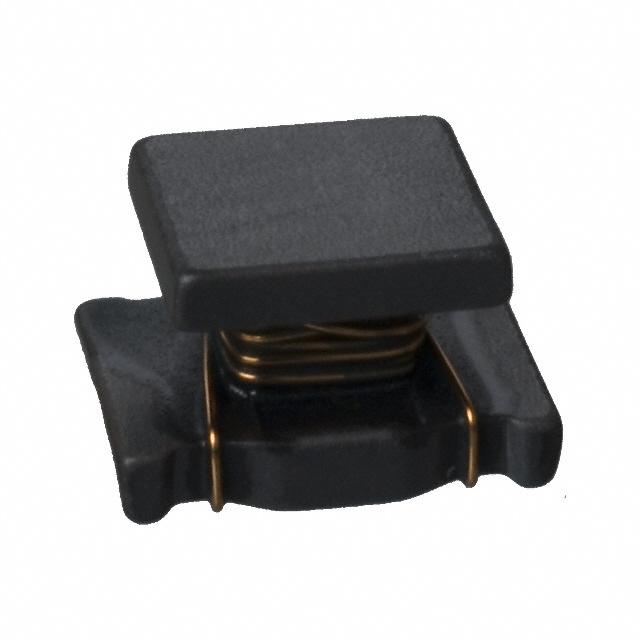

LQH43MN561J03L

片式电感器（片状线圈）一般用绕线型LQH43M / LQH43N系列 Chip Inductor Chip Coil for General Use Wire Wound Type LQH43M/LQH43N Series

固定器

得捷:
FIXED IND 560UH 70MA 14.5OHM SMD

立创商城:
560uH ±5%

艾睿:
An ideal space-saving electronic component is this general purpose chip LQH43MN561J03L surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 70m A with a maximum resistance of 14.5 Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 2.7M Hz. This device is made with wirewound technology. It has a tolerance of 5%. This product is 4.8 mm long, 2.8 mm tall and 3.4 mm deep. It has an inductance of 560u H.

安富利:
Ind General Purpose Chip Unshielded Wirewound 560uH 5% 1KHz 40Q-Factor Ferrite 70mA 1812 Embossed T/R

Chip1Stop:
Inductor General Purpose Chip Unshielded Wirewound 560uH 5% 1KHz 40Q-Factor Ferrite 70mA 14.5Ohm DCR 1812 T/R

Verical:
Inductor General Purpose Chip Unshielded Wirewound 560uH 5% 1KHz 40Q-Factor Ferrite 0.07A 14.5Ohm DCR 1812 T/R

Win Source:
560μH Unshielded Wirewound Inductor 70mA 14.5 Ohm Max 1812 4532 Metric
