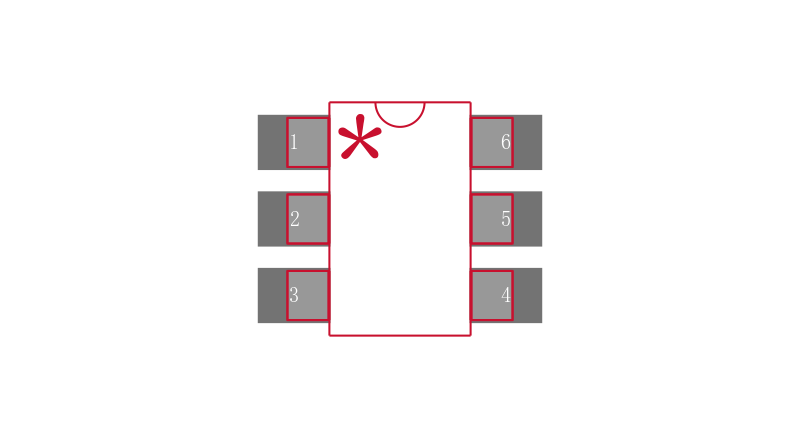

LT1790BIS6-5

Micropower SOT-23 Low Dropout Reference Family

DESCRIPTION

The LT®1790 is a family of SOT-23 micropower low dropout series references that combine high accuracy and low drift with low power dissipation and small package size. These micropower references use curvature compensation to obtain a low temperature coefficient and trimmed precision thin-film resistors to achieve high output accuracy. In addition, each LT1790 is post-package trimmed to greatly reduce the temperature coefficient and increase the output accuracy. Output accuracy is further assured by excellent line and load regulation. Special care has been taken to minimize thermally induced hysteresis.

FEATURES

■ High Accuracy:

A Grade—0.05% Max

B Grade—0.1% Max

■ Low Drift:

A Grade—10ppm/°C Max

B Grade—25ppm/°C Max

■ Low Profile 1mm ThinSOTTM Package

■ Low Supply Current: 60µA Max

■ Sinks and Sources Current

■ Low Dropout Voltage

■ Guaranteed Operational –40°C to 125°C

■ Wide Supply Range to 18V

■ Available Output Voltage Options: 1.25V, 2.048V, 2.5V, 3V, 3.3V, 4.096V and 5V

APPLICATIONS

■ Handheld Instruments

■ Negative Voltage References

■ Industrial Control Systems

■ Data Acquisition Systems

■ Battery-Operated Equipment
