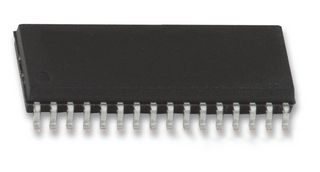

LYONTEK LY62W5128WL-55LLI 芯片, 存储器, SRAM, 4M, 512KX8, 2.7-5.5V, 32TSOPII
The is a 4194304-bit low power CMOS Static Random Access Memory SRAM organized as 524288 words by 8-bit. It is fabricated using very high performance, high reliability CMOS technology. Its standby current is stable within the range of operating temperature. The LY62W5128 is well designed for very low power system applications and particularly well suited for battery back-up nonvolatile memory application. The LY62W5128 operates from a single power supply of 2.7 to 5.5V and all inputs and outputs are fully TTL compatible.
电源电压DC 2.70V min
针脚数 32
存取时间 55 ns
内存容量 500000 B
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
引脚数 32
封装 TSOP
封装 TSOP
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
制造应用 Industrial, 工业, 消费电子产品, 计算机和计算机周边, Consumer Electronics, 通信与网络, Computers & Computer Peripherals, Communications & Networking
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LY62W5128WL-55LLI Lyontek | 当前型号 | 当前型号 |
BS62LV4006EIP55 BSI | 功能相似 | LY62W5128WL-55LLI和BS62LV4006EIP55的区别 |
