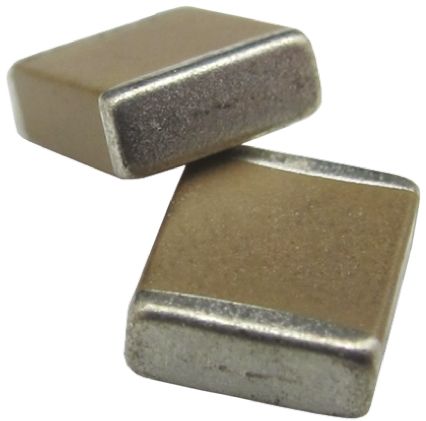

MURATA LQM31PN4R7M00L 表面贴装高频电感器, LQM31PN系列, 4.7 µH, ± 20%, 1206 [3216 公制], 25 MHz, 0.3 ohm
固定器
欧时:
Murata LQM31P_00 系列 LQM31PN4R7M00L 4.7 μH ±20% 铁氧体 多层贴片式电感器, 1206 3216M封装, SRF: 25MHz
得捷:
FIXED IND 4.7UH 700MA 375MOHM SM
立创商城:
4.7uH ±20% 375mΩ
e络盟:
高频电感器, 4.7 µH, LQM31PN系列, 700 mA, 1206 [3216 公制], 多层, 0.3 ohm
艾睿:
This power chip LQM31PN4R7M00L surface mount inductor from Murata is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has an inductance of 4.7u H. This device utilizes multi-layer technology. This product is 3.4 mm long, 0.95 mm tall and 1.8 mm deep. This SMD inductor has a maximum DC current of 700m A with a maximum resistance of 375m Ohm. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 25M Hz. It has a tolerance of 20%.
安富利:
Ind Power Chip Shielded Multi-Layer 4.7uH 20% 1MHz Ferrite 700mA 1206 Embossed T/R
Chip1Stop:
Inductor Power Chip Shielded Multi-Layer 4.7uH 20% 1MHz Ferrite 700mA 375mOhm DCR 1206 Embossed T/R
Verical:
Inductor Power Chip Shielded Multi-Layer 4.7uH 20% 1MHz Ferrite 0.7A 0.375Ohm DCR 1206 T/R
Newark:
# MURATA LQM31PN4R7M00L Surface Mount High Frequency Inductor, LQM31PN Series, 4.7 H, 20%, 1206 [3216 Metric], 25 MHz
儒卓力:
**LQM31P 4,7uH 0,7A 20% MLT **
Win Source:
4.7μH Shielded Multilayer Inductor 700mA 375 mOhm Max 1206 3216 Metric
额定电流 700 mA
容差 ±20 %
电感 4.7 µH
自谐频率 25 MHz
产品系列 LQM
电感公差 ±20 %
测试频率 1 MHz
电阻DC) ≤375 mΩ
额定电流DC 700 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±20 %
电阻DC Max 0.3 Ω
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.95 mm
封装公制 3216
封装 1206
重量 0.024 g
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
