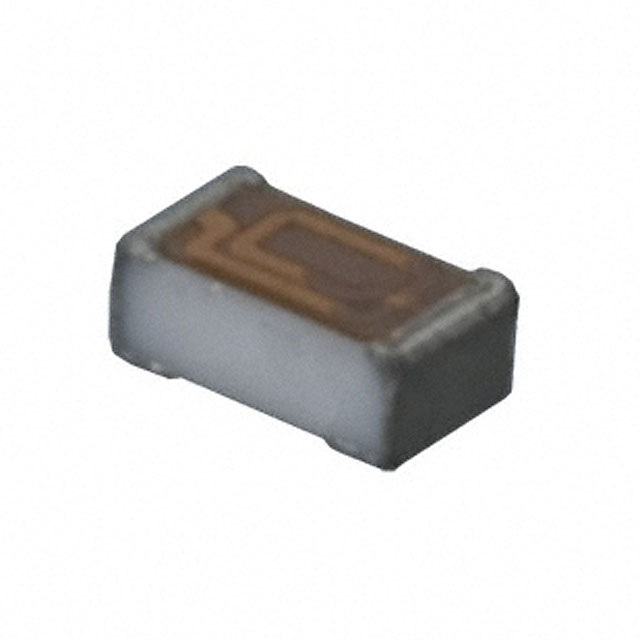

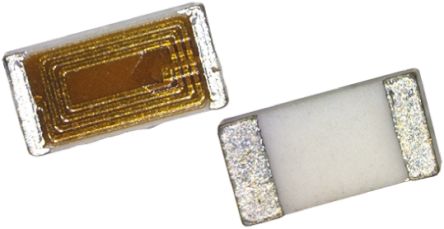

LQP18MN2N2C02D

0603

0603 - LQP18F 系列多层片式器

LQP18F 超小型薄型片式电感器，带薄膜技术结构。 提供各种电感值，可实现无调谐装配。

高频率范围时的高 Q

由于低杂散电容和窄电感分布产生的高自谐振频率可在高频电路（例如电信设备）中提供稳定的电感

### 应用：-

移动电话的高频率电路，如 PA、ANT、VCO、SAW 等。

移动电话

“蓝牙”

W-LAN

一般高频电路

立创商城:
2.2nH ±0.2nH 400mΩ

得捷:
FIXED IND 2.2NH 250MA 400MOHM SM

欧时:
Murata LQW18F 系列 LQP18MN2N2C02D 2.2 nH ±0.2nH 铁氧体 多层贴片式电感器, 0603 1608M封装, SRF: 6GHz

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this rf chip LQP18MN2N2C02D surface mount inductor from Murata to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This SMD inductor has a maximum DC current of 250m A with a maximum resistance of 400m Ohm. This device is made with thin film technology. It has an inductance of 2.2n H. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 6G Hz. This product is 1.75 mm long, 0.6 mm tall and 0.95 mm deep.

Chip1Stop:
Inductor RF Chip Thin Film 2.2nH 0.2nH 500MHz 17Q-Factor 250mA 400mOhm DCR 0603 T/R

Verical:
Inductor RF Chip Unshielded Thick Film 0.0022uH 0.2nH 500MHz 17Q-Factor 0.25A 0.4Ohm DCR 0603 T/R

Win Source:
2.2nH Unshielded Thick Film Inductor 250mA 400 mOhm Max 0603 1608 Metric
