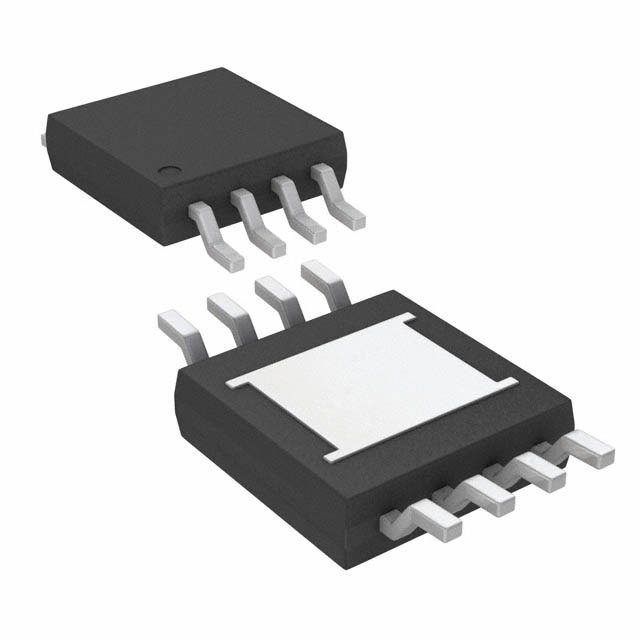

LT3061EMS8E-3.3#PBF

LDO稳压器, 固定, 1.6V 至 45V 输入, 250 mV 压降, 3.3V/0.1A 输出, MSOP-8

The is a fixed output, micropower, low noise, 100mA low dropout LDO linear regulator with active output discharge in 8 pin MSOP package. The device supplies 100mA of output current with a typical dropout voltage of 250mV at ILOAD = 100mA. A single external capacitor provides programmable low noise reference performance and output soft start functionality. The LT3061 device"s quiescent current is 45µA and provides fast transient response with a minimum 3.3µF output capacitor. In shutdown, quiescent current is less than 3µA and the reference soft start capacitor is reset. The LT3061 features an NMOS pull-down that discharges output when active-low SHDN or IN is driven low. Internal protection circuitry includes reverse battery protection, reverse current protection, current limit with foldback and thermal shutdown.

.

Fixed output voltage of 3.3V

.

Input voltage range of 1.6V to 45V

.

Low noise of 30µVrms at 10Hz to 100KHz

.

Output tolerance of ±2% over load, line and temperature

.

Single capacitor soft starts reference and lowers output noise

.

Line regulation of 1.6mV at ΔVIN = 3.9V to 45V ILOAD = 1mA

.

Load regulation of 4.4mV at VIN = 3.9V ΔILOAD = 1mA to 100mA

.

Operating temperature range from -40°C to 125°C
