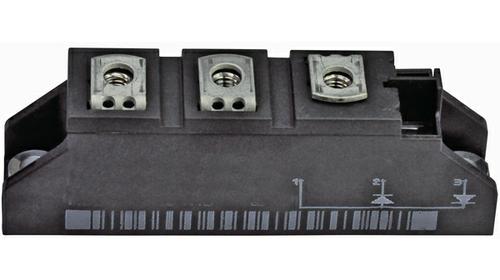

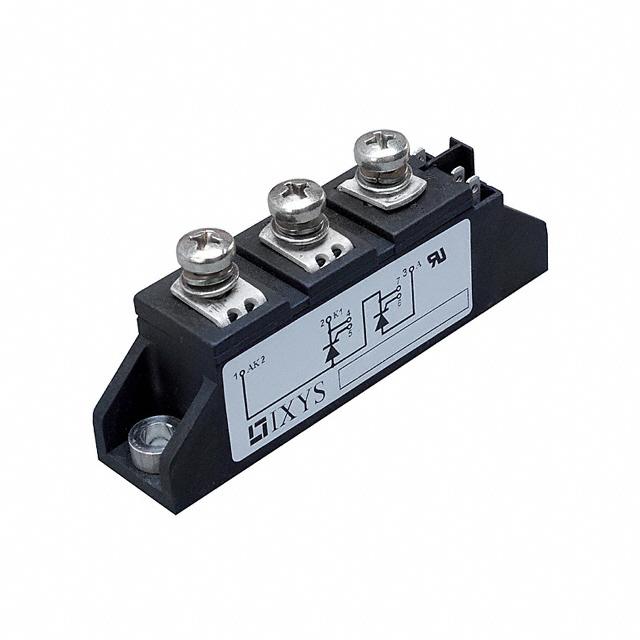

MCD44-12IO8B

Silicon Controlled Rectifier, 80A ITRMS, 49000mA IT, 1200V VDRM, 1200V VRRM, 1Element, TO-240AA, ROHS COMPLIANT, TO-240AA, 4Pin

This scr module thyristor manufactured from Ixys Corporation is a bistable switch, it will conduct when there is a current trigger and continue to be on when there is a forward bias voltage applied to it. This device has a surge current rating of 1240 A. Its repetitive peak forward blocking voltage is 1200 V, while its repetitive peak reverse voltage is 1200 V. This SCR thyristor has an operating temperature range of -40 °C to 100 °C.
