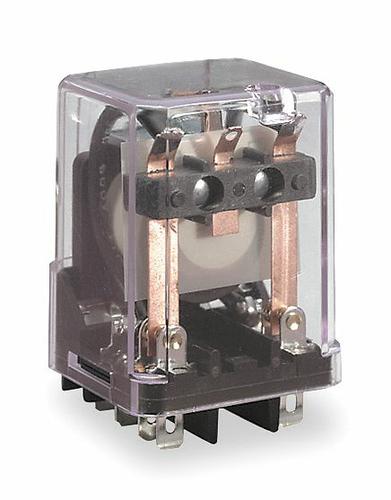

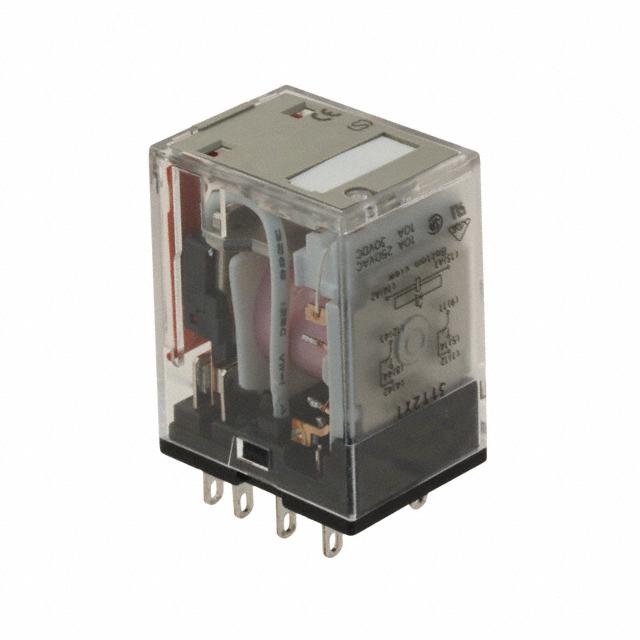

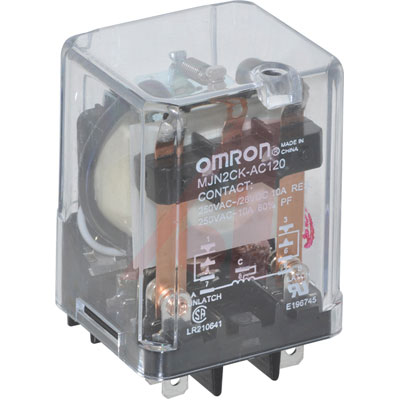

MJN2CK-AC24

通用继电器 LATCHING 10 A RELAY

MJN series is UL and CSA approved. Ideal for multiple applications such as motor loads, lighting loads and resistive loads. 3/16" dia. Ag alloy contacts, Industry standard contact configuration — DPDT and 3PDT, standard model contact rating of 10 A and models with "E" rated for 20 A. Two mounting options available — socket and flange mount. UL contact rating 10 A @ 28 VDC and 120/240 VAC at 80% pf, 1/3 HP @ 120 VAC, 1/2 HP @ 277/240/600 VAC. Terminals can be socket mounted or soldered. 10 Amp — Terminals 0.187", 20 Amp and 30 Amp — Terminal 0.25". Life Expectancy: Electrical — 100,000 operations; Mechanical — 10,000,000.

**Features**

* Rugged Power Driver Offers Superior 3/16" Through-Air and 3/8" Over-Surface Spacing

* Interlocked Frame and Contact Block Prevent Contact Misalignment During Plug-In

* Dust Covered Available with Indicator Lamps and "Push-to-Test" Buttons

* UL and CSA Recognition as a Motor Controllers Through 600 VAC

* Recognized For 1/2 HP Motor Controller Applications at 240/480/600 VAC — 1/3 HP @ 120 VAC

* UL and CSA Approved
