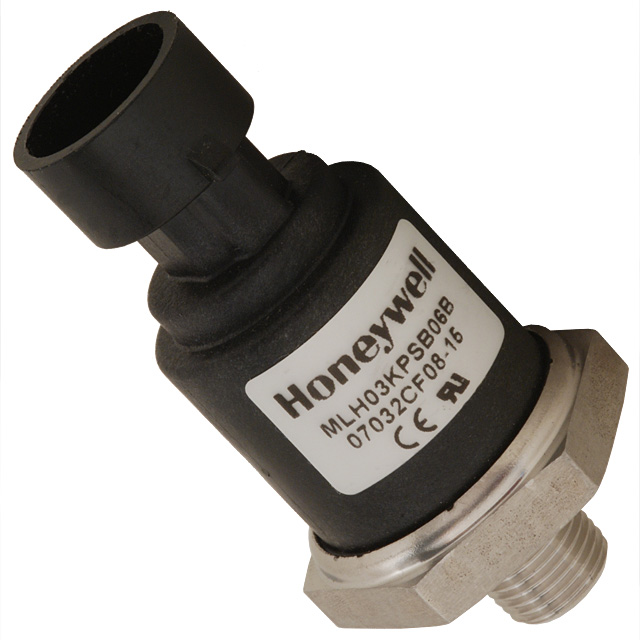

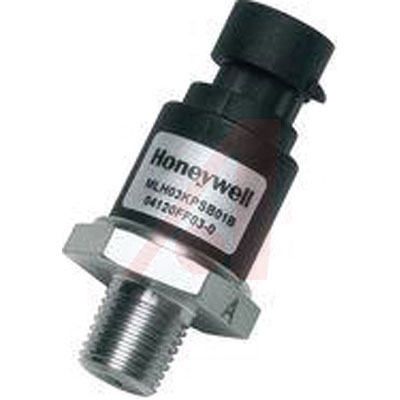

Honeywell All Metal Pressure Sensors, MLH Series, Pressure Range 0 BAR to 10BAR, Units in BAR, Measurement Sealed Gage psi4, Electrical Termination Cable 1m, Pressure Connector 1/4-18 NPT, Output Type 0.5VDC to 4.5VDC Ratiometric from 5VDC Excitation, Diaphragm Seal - Advanced Thick Film ATF.
MLH Series pressure sensors combine the latest in Application Specific Integrated Circuit ASIC technology with proven media isolated, metal diaphragm design. This digitally compensated sensor offers an unparalleled value and performance combination making it the ideal pressure sensing solution for demanding applications. Fully temperature compensated, calibrated and amplified, the MLH is available in 50 PSI to 8,000 PSI pressure ranges. MLH sensors deliver ±0.25% full scale accuracy Best Fit Straight Line BFSL and 2% total error over a temperature range of –40°C to +125°C –40°F to +257°F. Industry standard, field proven connectors and process ports are offered for high reliability and user flexibility.
**Features:**
* All Metal Wetted Parts for Use in Wide Variety of Fluid Applications
* No Internal Elastomeric Seals Mean No O-Ring Compatibility Issues
* Amplified Outputs Eliminate Cost of External Amplifiers
* Reverse Polarity and Overvoltage Protection Provide Protection Against Reversed Excitation
* Less Than 2 ms Response Time Provides Accurate, High-Speed Measurement
* Rated IP65 or Better for Protection from Harsh Environments
* Exceeds CE Heavy Industrial EMC for Use in Areas of High RFI/EMI
**Typical Applications:**
* Diesel Engines
* Refrigeration and HVAC/R
* General Industrial
* General Hydraulics
* Off Road Vehicles
* Braking Systems
* Natural Gas Vehicles
电源电压DC 5.00 V
额定电压DC 5.00 V
输出电压 0.5V ~ 4.5V
供电电流 4.00 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.25 %
电源电压 5V ~ 6V
引脚数 3
封装 Cylinder, Metal
长度 27 mm
宽度 27 mm
高度 55 mm
封装 Cylinder, Metal
重量 57 g
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 工业自动化
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 9026204000
