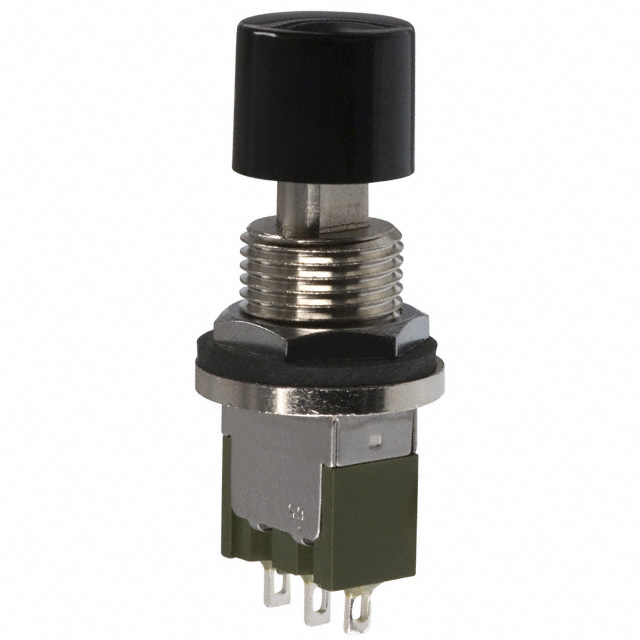

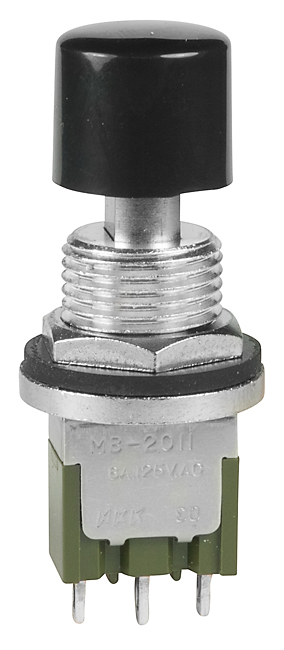

NKK SWITCHES MB2011SB3W01-DA 按钮开关, 非发光, SPDT, 6A, 125V
Series MB2000 miniature pushbutton switches are designed with an all metal switch action to ensure a 100,000 minimum mechanical life and a resin case to provide isolation between circuits. Although not process sealed Series MB2000 miniature pushbutton switches do have epoxy sealed terminals to prevent entry of solder flux, and other liquid agents, into the switch action.
e络盟:
按钮开关, 非发光, SPDT, 6A, 125V
艾睿:
Switch Push Button ON ON SPDT Round Plunger 6A 250VAC 30VDC Momentary Contact Panel Mount Solder Lug
Allied Electronics:
MINIATURE PUSHBUTTON/MULTI-FUNCTION
Chip1Stop:
Switch Push Button ON ON SPDT Round Plunger 6A 250VAC 30VDC Momentary Contact Solder Lug Panel Mount
Verical:
Switch Push Button ON ON SPDT Round Plunger 6A 250VAC 30VDC Momentary Contact Panel Mount Solder Lug
Newark:
# NKK SWITCHES MB2011SB3W01-DA Pushbutton Switch, SPDT, On-On, 125 V, 30 V, 6 A, Solder
Powell:
MINIATURE PUSHBUTTON/MULTI-FUNCTION
触点电镀 Nickel
额定电压DC 30 V
接触器类型 Button
额定电压AC 125 V
额定电流 6 A
排数 1
方向 Vertical
触点类型 SPDT
触点额定电流 6.00 A
额定电流Max 6A @125VAC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 125 VAC
接触电阻Max 10 mΩ
安装方式 Lug, Snap-In
长度 13.2 mm
宽度 13.2 mm
高度 44.5 mm
触点材质 Silver Alloy
产品生命周期 25000 Cycles
包装方式 Bulk
RoHS标准
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
