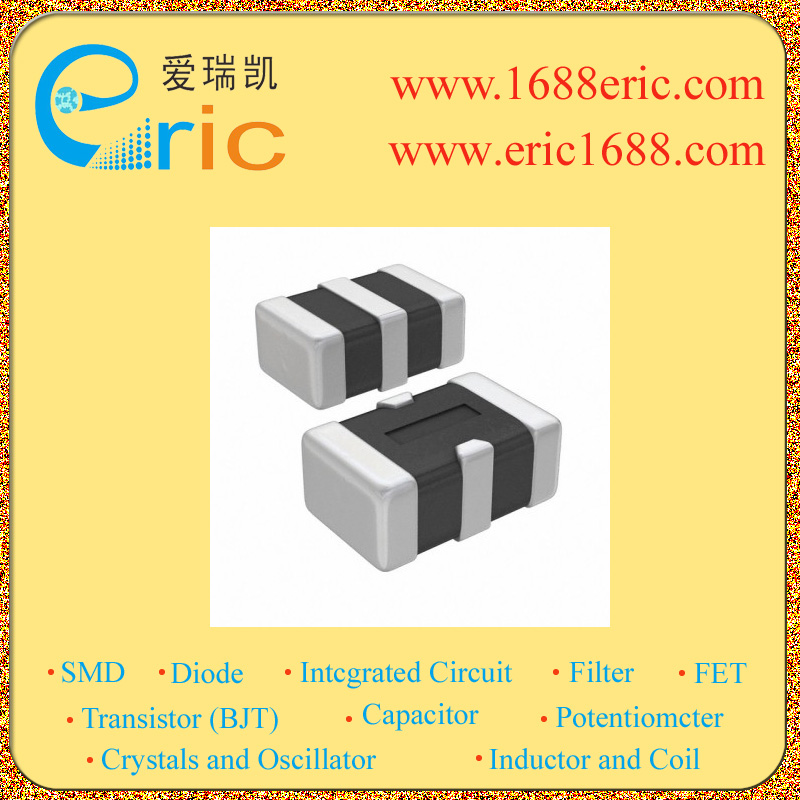

MEM2012T25R0T0S1

EMI Filter 70MHz to 2000MHz 0.1A 10VDC SMD T/R

类型Type|

\---|---

技术Technology|

通道数Number of Channels| 1

中心/截止频率Center / Cutoff Frequency| 25MHz

衰减值Attenuation Value| 3dB0@70MHz-2000MHz

电阻 - 通道 ΩResistance - Channel Ohms|

电流Current| 100mA

数值Values|

ESD 保护ESD Protection|

Description & Applications| FEATURES • Multilayer chip EMC filter utilizing a T-type circuit. • Entirely monolithic structure results in high reliability. • Due to closed magnetic circuit architecture, high-density installation becomes possible, and crosstalk generation is prevented. • Steep attenuation characteristic plot. Highly effective noise suppression. • Covers a wide range of frequencies. • MEM2012T is a coil type EMC filter. • This product is low profile type with the height of 0.85mm.

描述与应用| 特点 •多层芯片EMC滤波器，利用T型电路。 •完全单片结构在高可靠性。 由于闭合磁路结构，高密度的安装成为可能，并防止产生串扰。 陡峭的衰减特性曲线。高效的噪声抑制。 •涵盖了广泛的频率。 •MEM2012T是线圈式EMC滤波器。 •本产品是低调型与0.85毫米的高度。
