三极管
三极管
立创商城:
1个NPN,1个PNP 40V 600mA
得捷:
TRANS NPN/PNP 40V 0.6A SOT363
e络盟:
双极晶体管阵列, 双路, NPN, PNP, 40 V, 200 mW, 600 mA, 100 hFE, SOT-363
艾睿:
Design various electronic circuits with this versatile npn and PNP MMDT4413-7-F GP BJT from Diodes Zetex. This bipolar junction transistor&s;s maximum emitter base voltage is 6@NPN|5@PNP V. Its maximum power dissipation is 200 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has a maximum collector emitter voltage of 40 V and a maximum emitter base voltage of 6@NPN|5@PNP V. This bipolar junction transistor has a minimum operating temperature of -65 °C and a maximum of 150 °C.
Allied Electronics:
Trans GP BJT NPN/PNP 40V 0.6A SOT363
安富利:
Trans GP BJT NPN/PNP 40V 0.6A 6-Pin SOT-363 T/R
富昌:
MMDT4413 系列 NPN/PNP 40 V 200 mW 小信号 晶体管 表面贴装 - SOT-363-6
Chip1Stop:
Trans GP BJT NPN/PNP 40V 0.6A 6-Pin SOT-363 T/R
Verical:
Trans GP BJT NPN/PNP 40V 0.6A Automotive 6-Pin SOT-363 T/R
Newark:
# DIODES INC. MMDT4413-7-F Bipolar Transistor Array, Dual, NPN, PNP, 40 V, 200 mW, 600 mA, 100 hFE, SOT-363
儒卓力:
**NPN/PNP DUAL-TR.60V/40V SOT363 **
Win Source:
TRANS NPN/PNP 40V 0.6A SOT363
DeviceMart:
TRANS COMP PAIR 40V SOT363
频率 250 MHz
额定电压DC 40.0 V
额定电流 600 mA
额定功率 0.2 W
针脚数 6
极性 NPN, PNP
耗散功率 200 mW
击穿电压集电极-发射极 40 V
集电极最大允许电流 0.6A
最大电流放大倍数hFE 300
额定功率Max 200 mW
直流电流增益hFE 100
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 6

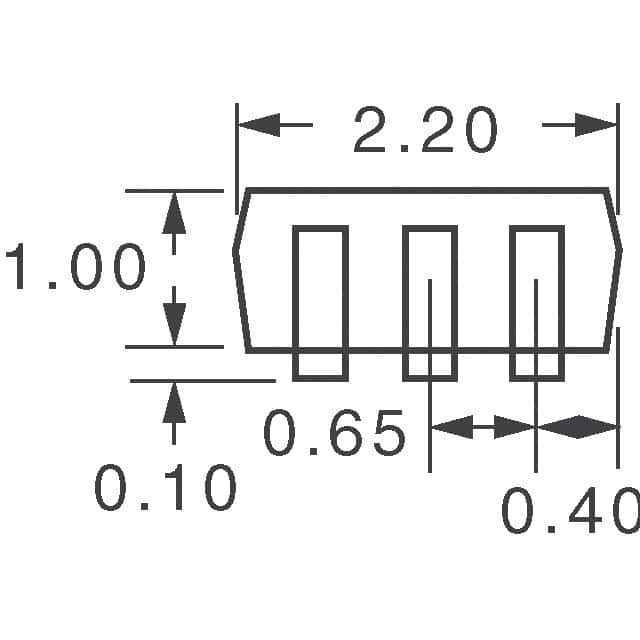

封装 SOT-363
宽度 1.35 mm
封装 SOT-363
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 车用, 军用与航空, 国防, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMDT4413-7-F Diodes 美台 | 当前型号 | 当前型号 |
MMDT4413-7 美台 | 功能相似 | MMDT4413-7-F和MMDT4413-7的区别 |
