CMOS 运算放大器,OPA 系列### 运算放大器,Texas Instruments
CMOS ,OPA 系列
欧时:
### CMOS 运算放大器,OPA 系列### 运算放大器,Texas Instruments
德州仪器TI:
Dual, 12-V, 1-MHz, low-power, low-offset operational amplifier
得捷:
IC CMOS 2 CIRCUIT 8VSSOP
艾睿:
Amplify signals with this simple general purpose amplifier OPA2705EA/250 OP amp from Texas Instruments. Its typical dual supply voltage is ±3|±5 V, with a minimum of ±2 V and maximum of ±6 V. This op amp has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device is made with CMOS technology. This device uses one or two power supplies. It has 2 channels per chip.
安富利:
OP Amp Dual GP R-R I/O ±6V/12V 8-Pin VSSOP T/R
Chip1Stop:
OP Amp Dual GP R-R I/O ±6V/12V 8-Pin VSSOP T/R
Verical:
Op Amp Dual Low Input Bias Current Amplifier R-R I/O ±6V/12V 8-Pin VSSOP T/R
输出电流 10mA @12V
供电电流 160 µA
电路数 2
通道数 2
共模抑制比 66 dB
输入补偿漂移 4.00 µV/K
带宽 1.00 MHz
转换速率 600 mV/μs
增益频宽积 1 MHz
输入补偿电压 500 µV
输入偏置电流 1 pA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 1 MHz
共模抑制比Min 66 dB
电源电压 4V ~ 12V
电源电压Max 12 V
电源电压Min 4 V
安装方式 Surface Mount
引脚数 8

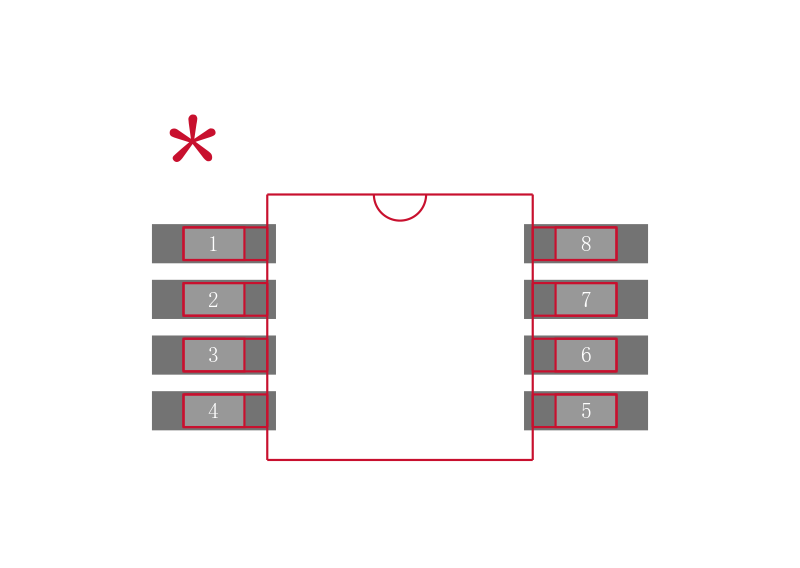

封装 VSSOP-8
长度 3 mm
宽度 3 mm
高度 0.97 mm
封装 VSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPA2705EA/250 TI 德州仪器 | 当前型号 | 当前型号 |
OPA2705EA/250G4 德州仪器 | 完全替代 | OPA2705EA/250和OPA2705EA/250G4的区别 |
OPA2705PAG4 德州仪器 | 完全替代 | OPA2705EA/250和OPA2705PAG4的区别 |
OPA2705UA 德州仪器 | 功能相似 | OPA2705EA/250和OPA2705UA的区别 |
