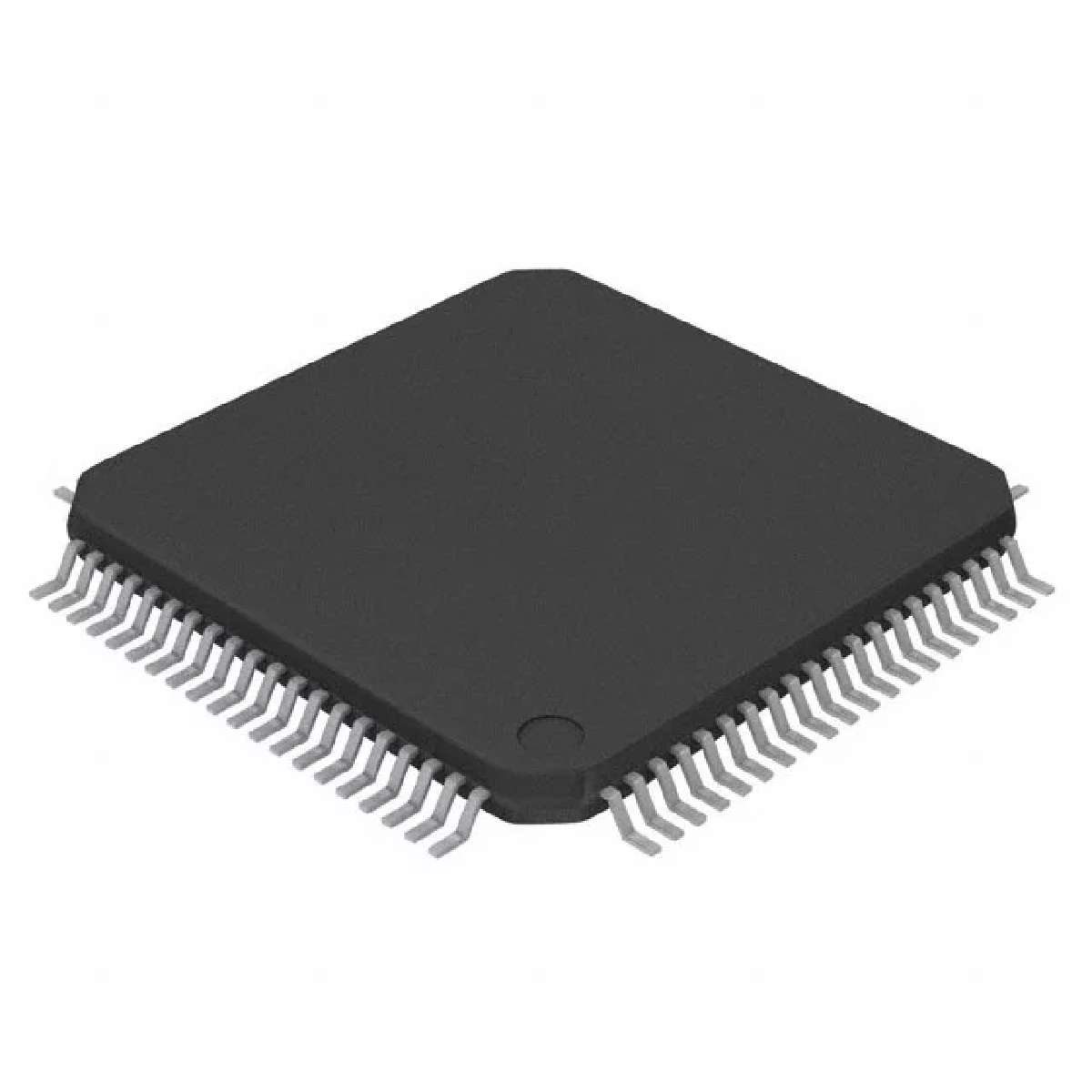

MCU 8Bit PIC18 PIC RISC 64KB Flash 2.5V/3.3V/5V 80Pin TQFP T/R
Peripheral Highlights:
• Two Master Synchronous Serial Port MSSP modules supporting 2/3/4-wire SPI™ all 4 modes and I2C™ Master and Slave modes
• Two Capture/Compare/PWM CCP modules
• Three Enhanced Capture/Compare/PWM ECCP modules:
\- One, two or four PWM outputs
\- Selectable polarity
\- Programmable dead time
\- Auto-Shutdown and Auto-Restart
• Two Enhanced Addressable USART modules:
\- Supports RS-485, RS-232 and LIN 1.2
\- Auto-Wake-up on Start bit
\- Auto-Baud Detect
• 10-bit, up to 16-channel Analog-to-Digital Converter module A/D
\- Auto-acquisition capability
\- Conversion available during Sleep
• Dual analog comparators with input multiplexing
• High-current sink/source 25 mA/25 mA
• Four programmable external interrupts
• Four input change interrupts
电源电压DC 5.00 V, 5.50 V max
时钟频率 40.0MHz max
RAM大小 3936 B
位数 8
FLASH内存容量 64 KB
I/O引脚数 70
存取时间 40.0 µs
内核架构 PIC
模数转换数ADC 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 80
封装 TQFP-80
封装 TQFP-80
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
PIC18LF8622T-I/PT Microchip 微芯 | 当前型号 | 当前型号 |
PIC18F8622T-I/PT 微芯 | 完全替代 | PIC18LF8622T-I/PT和PIC18F8622T-I/PT的区别 |
PIC18F8622-I/PT 微芯 | 类似代替 | PIC18LF8622T-I/PT和PIC18F8622-I/PT的区别 |
PIC18LF8622-I/PT 微芯 | 类似代替 | PIC18LF8622T-I/PT和PIC18LF8622-I/PT的区别 |
