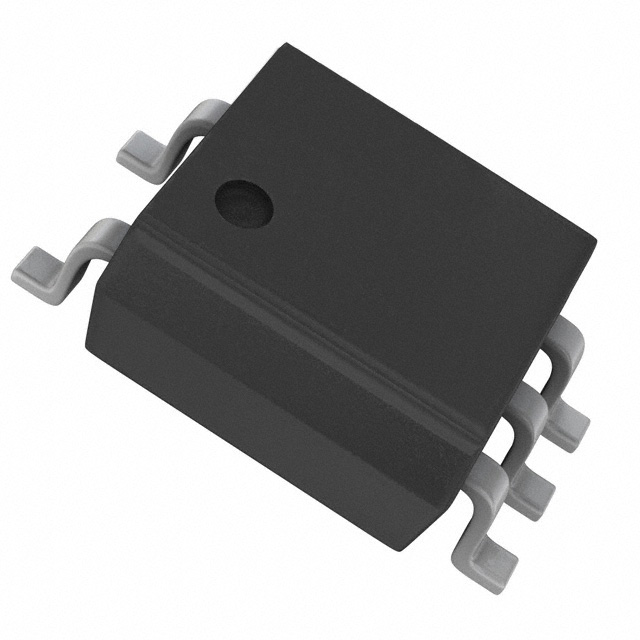

Logic Output Optoisolator 2Mbps Open Collector 3750Vrms 1Channel 15kV/μs CMTI 5-MFP
Logic Output Optoisolator 2Mbps Open Collector 3750Vrms 1 Channel 15kV/µs CMTI 5-MFP
得捷:
OPTOISO 3.75KV OPEN COLL 5MFP
艾睿:
Optocoupler Logic-Out Open Collector DC-IN 1-CH 5-Pin Mini-Flat T/R
安富利:
Optocoupler Logic-Out Open Collector DC-IN 1-CH 5-Pin Mini-Flat T/R
Win Source:
Logic Output Optoisolator 2Mbps Open Collector 3750Vrms 1 Channel 15kV/μs CMTI 5-MFP
通道数 1
正向电压 1.6 V
耗散功率 100 mW
上升时间 400 ns
隔离电压 3750 Vrms
正向电流 25 mA
正向电压Max 1.95 V
正向电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
电源电压 4.5V ~ 35V
安装方式 Surface Mount
引脚数 5
封装 SOIC-6
高度 2.6 mm
封装 SOIC-6
工作温度 -40℃ ~ 85℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
