NXP PESD3V3S2UT 静电保护装置, TVS, 20 V, SOT-23, 3 引脚
The is a double ESD Protection Diode, designed to protect up to two transmission or data lines from Electrostatic Discharge ESD damage. Increased layout flexibility and more PCB space, reduced power consumption for extended battery life and fewer ESD strike related field returns. For outstanding protection against ESD and other voltage-induced transient pulses.
- .
- 3.3V Reverse stand-off voltage
- .
- 300pF f=1MHz Capacitance
- .
- 30kV Electrostatic discharge capability
- .
- 400R at 1mA Differential resistance
- .
- SPICE Model type
ESD sensitive device, take proper precaution while handling the device.
击穿电压 5.60 V
针脚数 3
钳位电压 20 V
安装方式 Surface Mount
引脚数 3

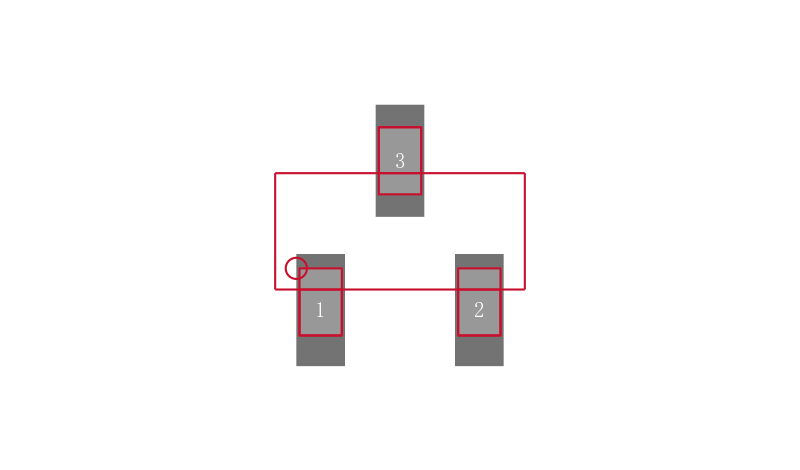

封装 SOT-23
封装 SOT-23
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Computers & Computer Peripherals, 计算机和计算机周边, 音频, 成像, 视频和目视, 通信与网络, Communications & Networking, Audio, Imaging, Video & Vision
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
PESD3V3S2UT NXP 恩智浦 | 当前型号 | 当前型号 |
MMBZ6V2ALT1G 安森美 | 功能相似 | PESD3V3S2UT和MMBZ6V2ALT1G的区别 |
MMBZ6V8ALT1G 安森美 | 功能相似 | PESD3V3S2UT和MMBZ6V8ALT1G的区别 |
ESDA6V1L 意法半导体 | 功能相似 | PESD3V3S2UT和ESDA6V1L的区别 |
