NXP PUMH13 双极晶体管阵列, BRT, NPN, 50 V, 200 mW, 100 mA, 100 hFE, SOT-363
The is a dual NPN Resistor Equipped Transistor Array in a surface-mount plastic package. This bipolar device is suitable for low current peripheral driver, control of IC inputs and replaces general-purpose transistors in digital applications.
- .
- Built-in bias resistors
- .
- Simplifies circuit design
- .
- Reduces component count
- .
- PUMB13 dual PNP complement
- .
- PUMD13 NPN-PNP complement
针脚数 6
极性 NPN
耗散功率 200 mW
击穿电压集电极-发射极 50 V
集电极最大允许电流 100mA
直流电流增益hFE 100
工作温度Max 150 ℃
安装方式 Surface Mount
引脚数 6

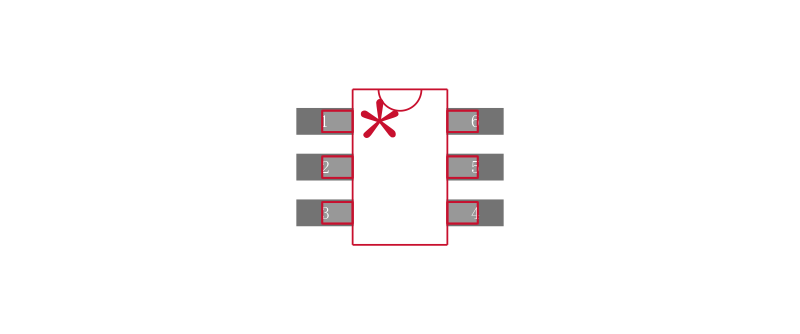

封装 SOT-363
封装 SOT-363
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Computers & Computer Peripherals, Power Management, Automation & Process Control, Automotive, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
PUMH13 NXP 恩智浦 | 当前型号 | 当前型号 |
PUMH13,115 恩智浦 | 完全替代 | PUMH13和PUMH13,115的区别 |
PUMH15 恩智浦 | 完全替代 | PUMH13和PUMH15的区别 |
BCR133S 英飞凌 | 类似代替 | PUMH13和BCR133S的区别 |
