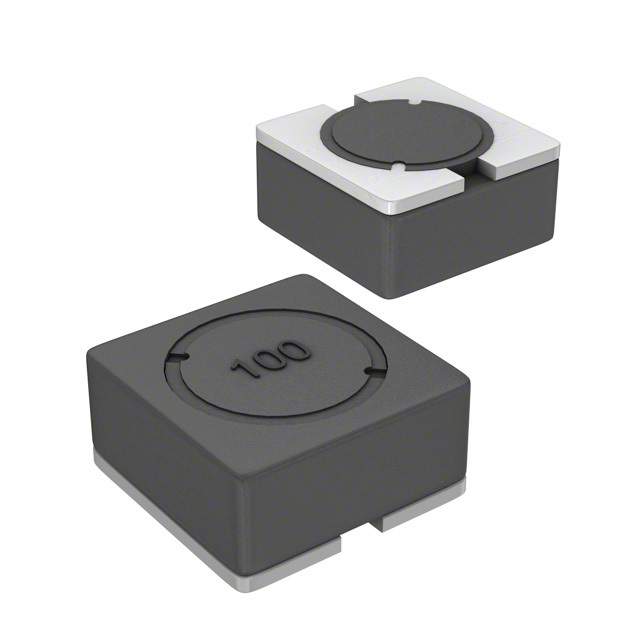

BOURNS SRR5028-4R2Y 电感, 4.2uH, 2.5A, 30%, SMD
Inductor Power Shielded Wirewound 4.2uH 30% 100KHz 7Q-Factor Ferrite 2.5A 35mOhm DCR T/R
得捷:
FIXED IND 4.2UH 2.5A 35 MOHM SMD
立创商城:
4.2uH ±30% 2.5A 35mΩ
贸泽:
Fixed Inductors 4.2uH 30% SMD 5028
e络盟:
功率电感SMD, 4.2 µH, 2.5 A, 屏蔽, 2.2 A, SRR5028 Series, 5.8mm x 5.8mm x 2.8mm
艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power SRR5028-4R2Y surface mount inductor from Bourns is perfect for you! This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 51MTyp Hz. This SMD inductor has a maximum DC current of 2.5 A with a maximum resistance of 35m Ohm. This product is 6.1 mm long, 3 mm tall and 6.1 mm deep. This device utilizes wirewound technology. It has an inductance of 4.2u H.
安富利:
Ind Power Shielded Wirewound 4.2uH 30% 100KHz 7Q-Factor Ferrite 2.5A T/R
Verical:
Inductor Power Shielded Wirewound 4.2uH 30% 100KHz 7Q-Factor Ferrite 2.5A 0.035Ohm DCR T/R
Newark:
# BOURNS SRR5028-4R2Y Surface Mount Power Inductor, SRR5028 Series, 4.2 µH, 2.5 A, 2.2 A, Shielded, 0.035 ohm
Online Components:
Inductor Power Shielded Wirewound 4.2uH 30% 100KHz 7Q-Factor Ferrite 2.5A 35mOhm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 4.2uH 30% 100KHz 7Q-Factor Ferrite 2.5A 35mOhm DCR T/R
额定电流 2.5 A
容差 ±30 %
电感 4.2 µH
自谐频率 51 MHz
Q值 7.0
电感公差 ±30 %
测试频率 100 kHz
电阻DC) ≤35 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.035 Ω
安装方式 Surface Mount

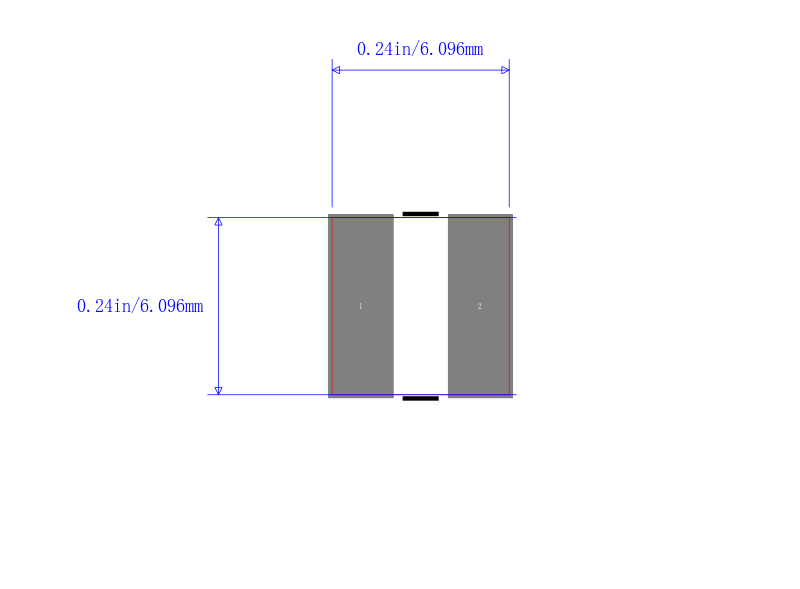

封装 5.8mm x 5.8mm x 2.8mm
长度 5.8 mm
宽度 5.8 mm
高度 3 mm
封装 5.8mm x 5.8mm x 2.8mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
