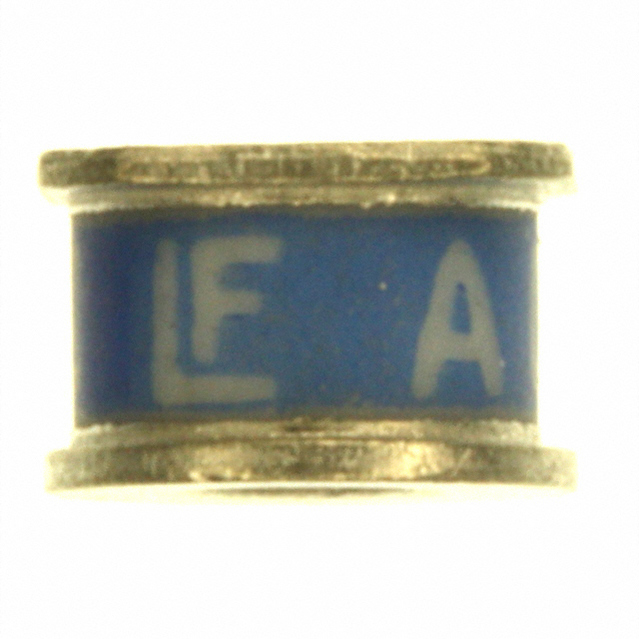

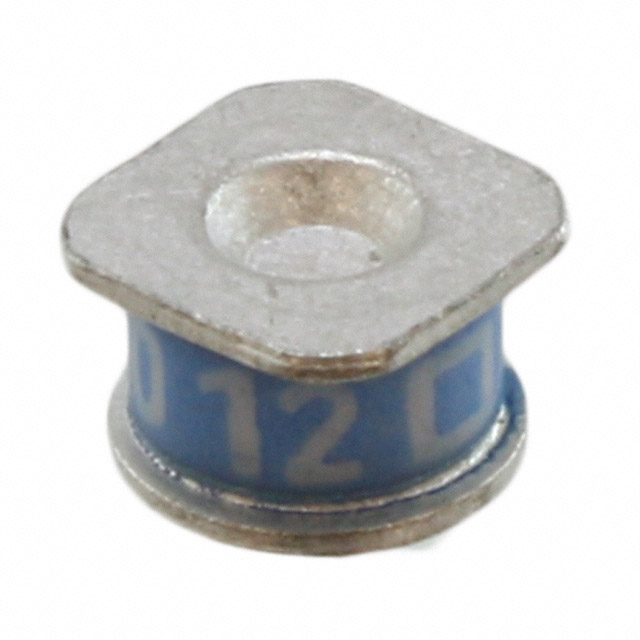

Littelfuse SL1002A Series Gas Discharge TubeLittelfuse SL1002A series GDT plasma arresters have been developed for broadband equipment, featuring design features that provide high levels of protection against fast rising transients usually caused by lightning disturbances. Littelfuse SL1002A GDT"s are extremely robust, able to divert a 5000A pulse without destruction. Applications include broadband equipment, ADSL equipment, XDSL equipment, satellite and CATV equipment as well as general telecom equipment.Ultra low insertion loss Excellent response to fast rising transients ### 瞬态电压抑制器(充气)
The SL1002A series Broadband Optimized™ Gas Discharge Tube has been especially developed for use in broadband equipment. The special design features to provide high levels of protection against fast rising transients in the 100V/µs to 1kV/µs range usually caused by lightning disturbances. This device has ultra low capacitance typically 1.2pF or less and present insignificant signal losses up to 1.5GHz. For AC power cross of long duration, over-current protection is recommended.
绝缘电阻 1000 MΩ
电容 1.2 pF
工作温度Max 90 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 6.2 mm
宽度 6.2 mm
高度 6.2 mm
封装 SMD-2
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 安全, Industrial, Safety, Communications & Networking, 便携式器材, Computers & Computer Peripherals, 通信与网络, 成像, Imaging, Video & Vision, Portable Devices, 视频和目视, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
