SMAJ瞬态电压抑制二极管系列 SMAJ Transient Voltage Suppressor Diode Series
General Information
The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components.
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AC SMA size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 495 V and Breakdown Voltage up to 550 V. Typical fast response times are less than 1.0 picoseconds for unidirectional devices and less than 5.0 picoseconds for bidirectional devices from 0 V to Minimum Breakdown Voltage.
Bourns® Chip Diodes conform to JEDEC standards, are easy to handle with standard pick and place equipment and the flat confguration minimizes roll away.
Features
■ RoHS compliant■ Surface Mount SMA package
■ Standoff Voltage: 5.0 to 495 volts
■ Power Dissipation: 400 watts
Applications
■ IEC 61000-4-2 ESD Min. Level 4
■ IEC 61000-4-4 EFT
■ IEC 61000-4-5 Surge
工作电压 3.5 V
电路数 1
钳位电压 18.2 V
测试电流 1 mA
最大反向击穿电压 13.2 V
脉冲峰值功率 400 W
最小反向击穿电压 12.2 V
击穿电压 12.2 V
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2

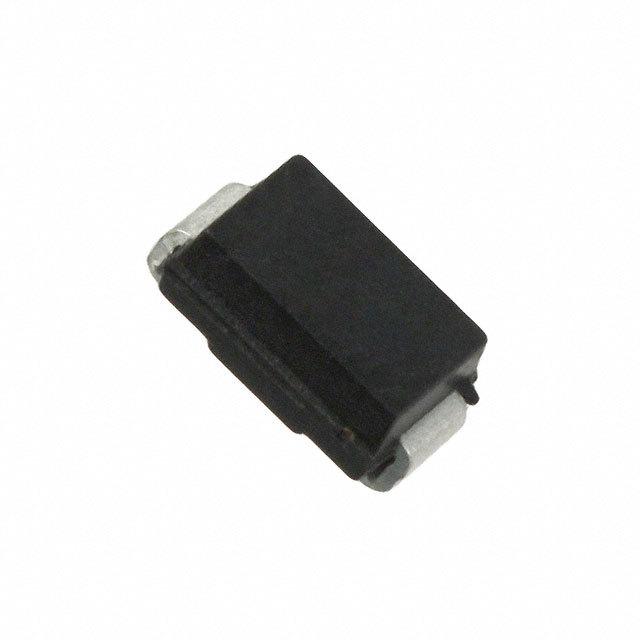

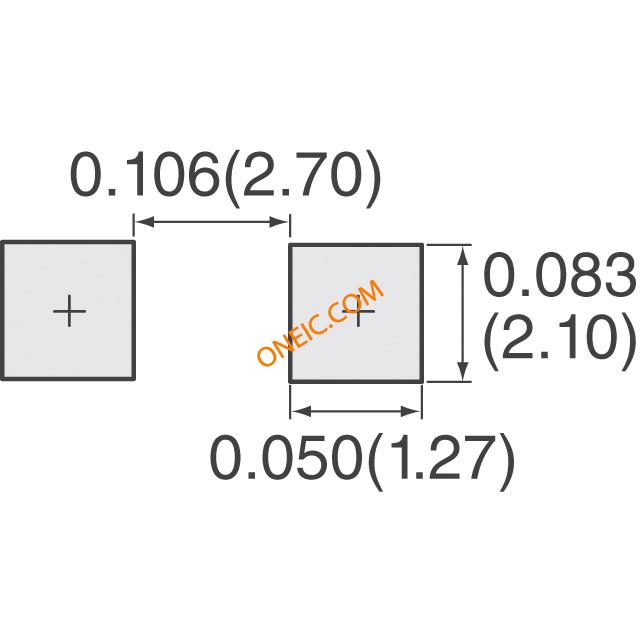

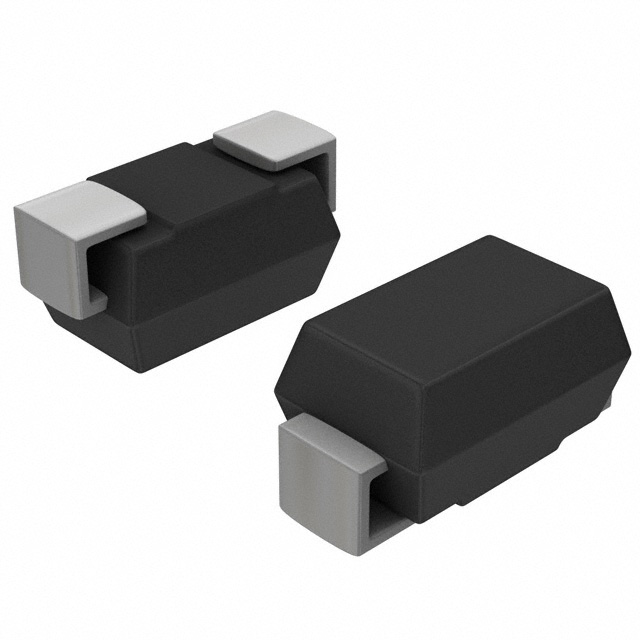

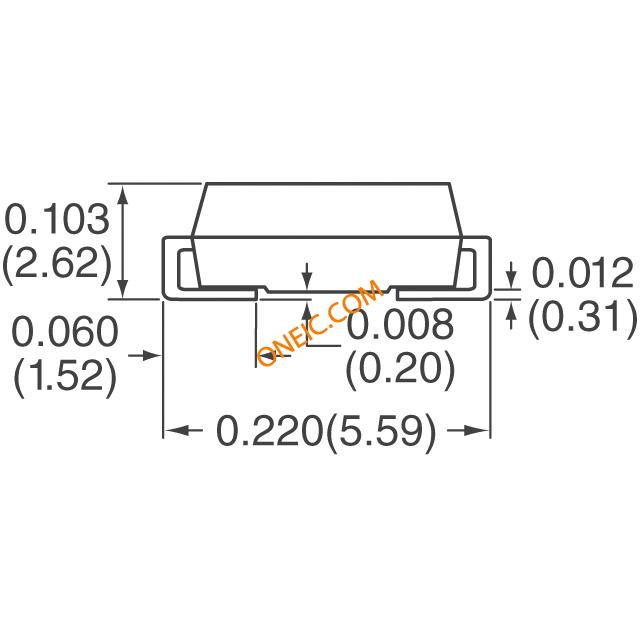

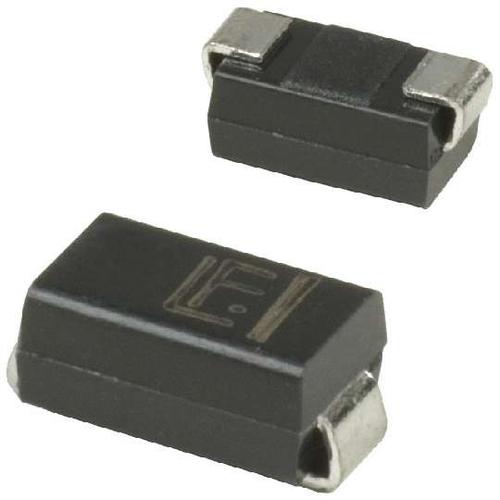

封装 DO-214AC
宽度 2.92 mm
封装 DO-214AC
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMAJ11A Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
SMAJ13A 伯恩斯 | 类似代替 | SMAJ11A和SMAJ13A的区别 |
SMAJ54CA 伯恩斯 | 类似代替 | SMAJ11A和SMAJ54CA的区别 |
SMAJ11A-13-F 美台 | 功能相似 | SMAJ11A和SMAJ11A-13-F的区别 |
